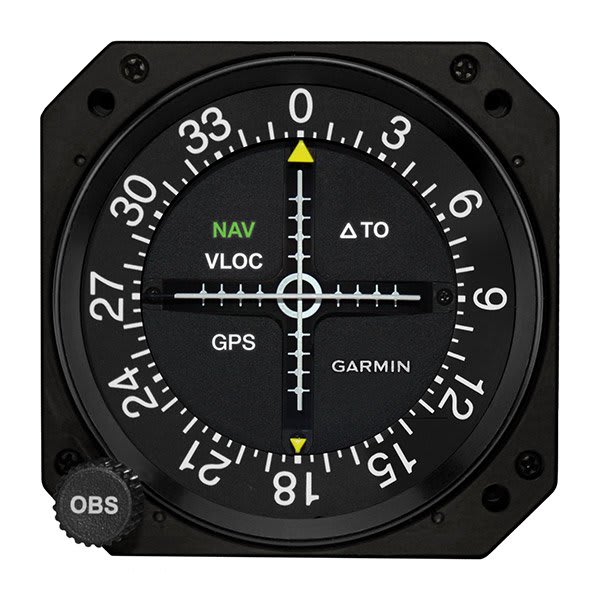

Garmin GI-106B - 013-00593-00
The Garmin GI-106B is a flight display instrument that presents VOR/LOC/GPS course guidance and glideslope information through dedicated needle indications. Its integral resolver provides VOR/GPS OBS feedback, making it a focused choice for aircraft panels using supported navigation sources.
Clear Course Guidance
Track VOR, localizer, or GPS course information with a dedicated VOR/LOC/GPS needle. Rectilinear needle movements provide a direct visual presentation.
Glideslope Indication
View glideslope guidance on its own needle for approaches that provide glideslope information. The separate indication keeps vertical guidance distinct from course guidance.
Status At A Glance
LED GPS, NAV and VLOC annunciators identify the active guidance mode. LED TO/FROM annunciators add directional reference, while needles are hidden when invalid.
Navigation Indication Workflow
The GI-106B combines course and glideslope needle indications in a single instrument. Its VOR/LOC/GPS needle supports multiple navigation guidance sources, and the integral resolver supplies VOR/GPS OBS feedback. This arrangement keeps key course-reference information available in the instrument presentation.
Annunciation And Validity
LED annunciators provide dedicated GPS, NAV and VLOC status indication. TO/FROM annunciators show the applicable course relationship, helping distinguish whether the selected course leads toward or away from the station or waypoint. When guidance is invalid, the applicable needles are hidden rather than presenting an active indication.
Not sure this is the right fit for your aircraft?
Avionics compatibility can vary based on your aircraft, existing equipment, and planned installation. Give Neal Avionics a call or send us an email—we’ll be happy to help you review the product and determine whether it fits your needs.
The Garmin GI-106B is a flight display instrument providing VOR/LOC/GPS and glideslope needle indications, along with LED GPS, NAV, VLOC, and TO/FROM annunciators. Its rectilinear needle movements and integral resolver support VOR/GPS OBS feedback, while the needles are hidden when their indications are invalid. The GI-106B provides clear visual navigation status information in a dedicated instrument format.
Stay on Course
Stay on course with the GI 106B, a high-quality course deviation indicator from Garmin. The panel-mounted GI 106B includes a VOR/LOC/GPS needle as well as a glideslope needle, which can be hidden and disabled by an installer if the glideslope functionality is not needed. The GI 106B contains LED-lit GPS, NAV and VLOC mode annunciators, for an easy-to-read and modern look.
TO/FROM annunciators are also LED, and when invalid, the needles are simply hidden out of the pilot’s view instead of using conventional invalid flags. The GI 106B is compatible with the same pinout connections as the legacy GI 102A and GI 106A course deviation indicators, allowing for an easy upgrade path. It also features anti-reflective lenses and LED flood lighting for viewing at night. Please contact your local dealer for more information.
Specifications, Compatibility & Documentation
Review detailed technical specifications, compatible avionics interfaces and available product documentation for the Garmin GI-106B - 013-00593-00. This information can help aircraft owners and operators understand the product’s physical requirements, supported equipment and installation considerations.
Specifications and compatibility information are provided for general reference and may change without notice. Final aircraft eligibility, approved configuration, equipment compatibility and installation requirements must be confirmed by Neal Avionics before installation.
