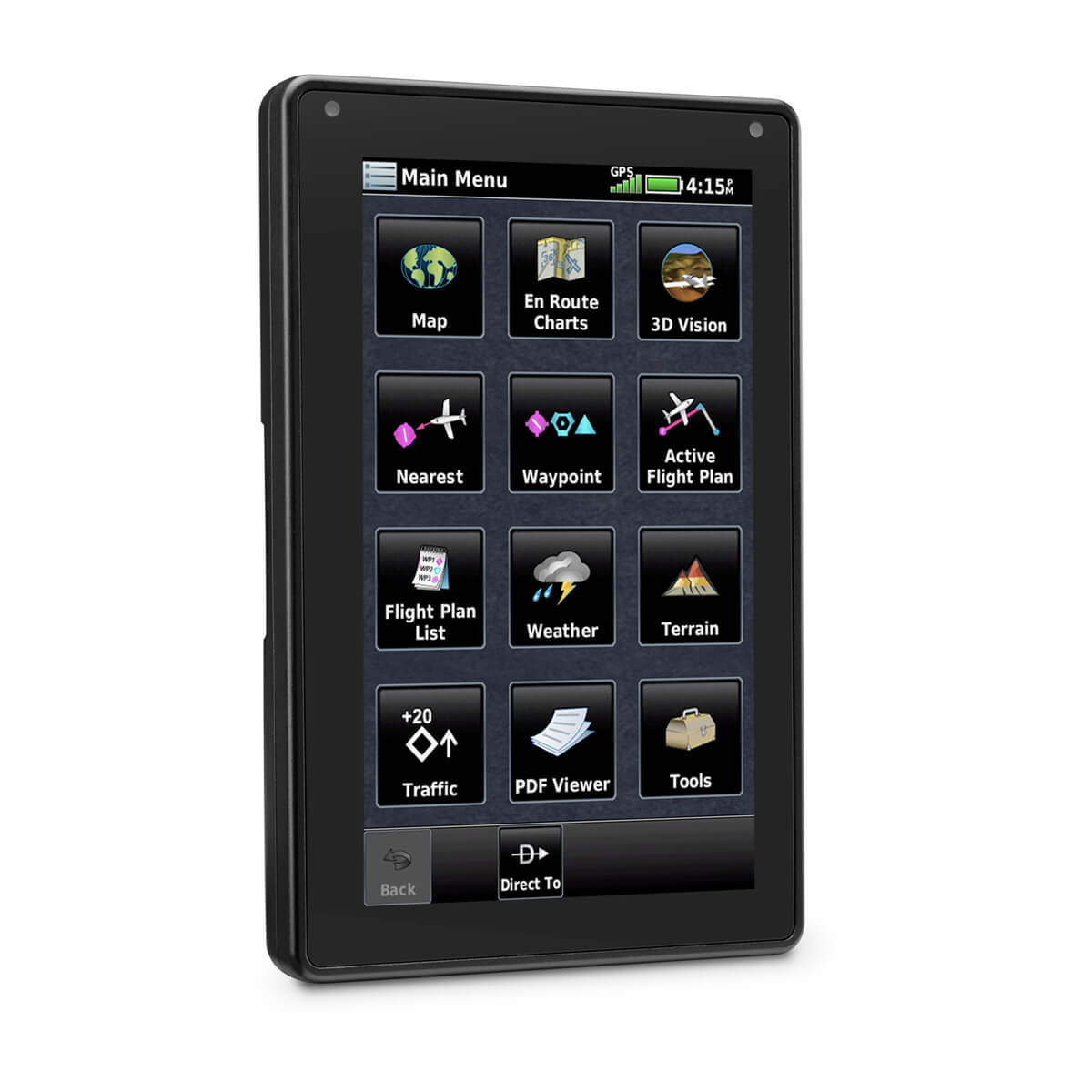

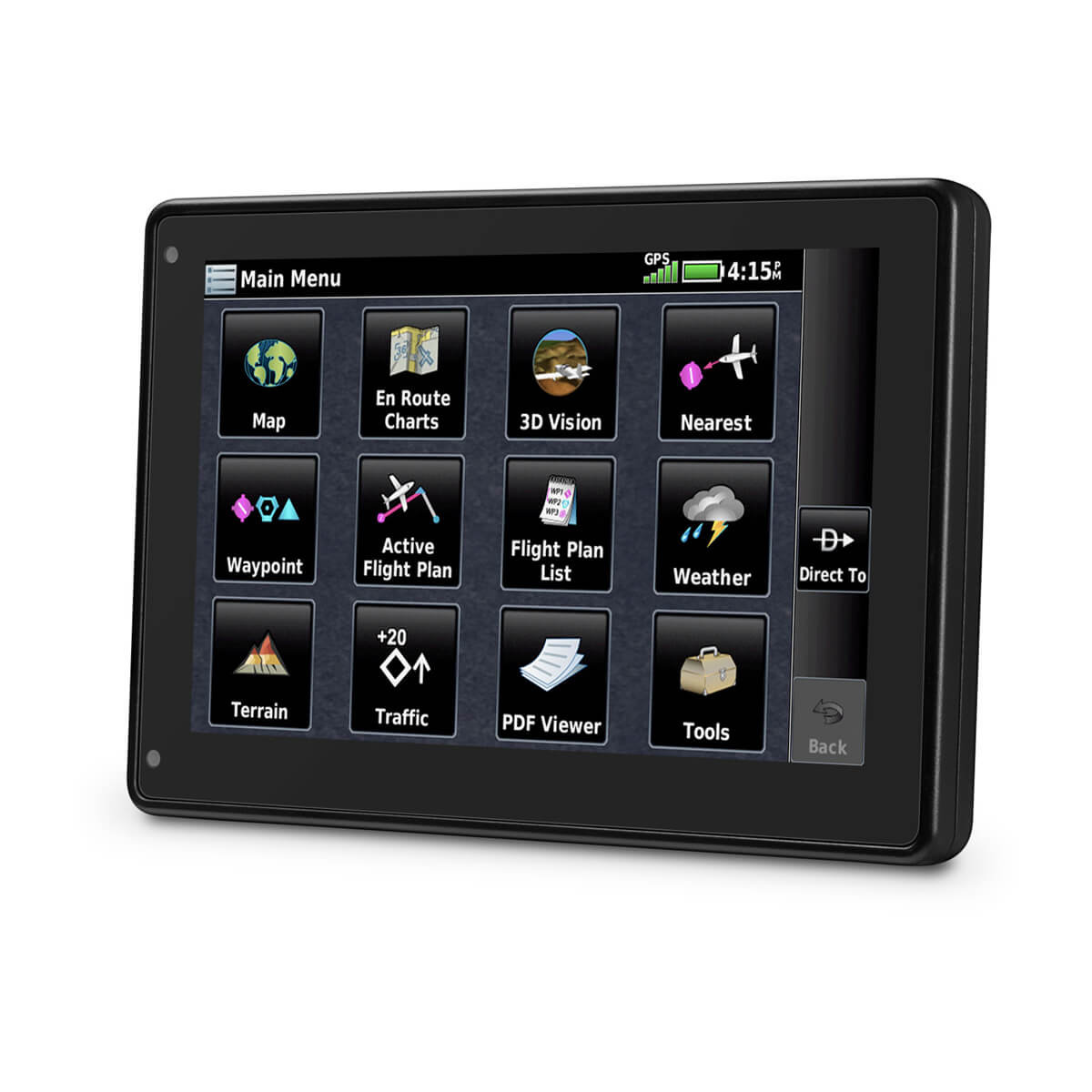

Garmin aera® 760 - 010-02303-00
The Garmin aera® 760 is a portable aviation GPS navigator that brings VFR/IFR route data, approach information and moving-map capability to a 7-inch touchscreen display. Its sunlight-readable screen, flexible charting and flight-planning tools make it a strong option for pilots who want detailed navigation information in a portable format. Portrait and landscape orientation support adaptable cockpit positioning.
Clear Chart Viewing

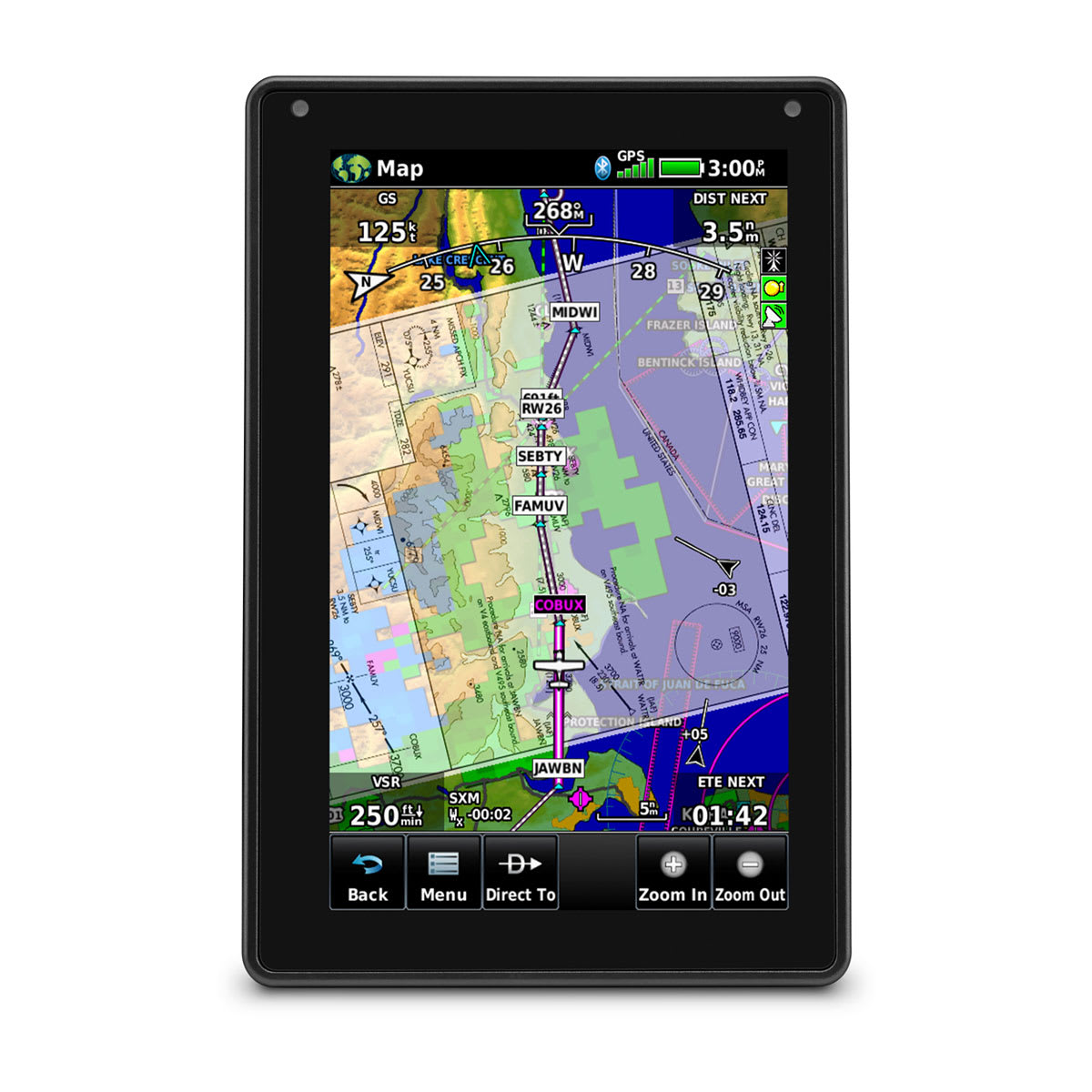

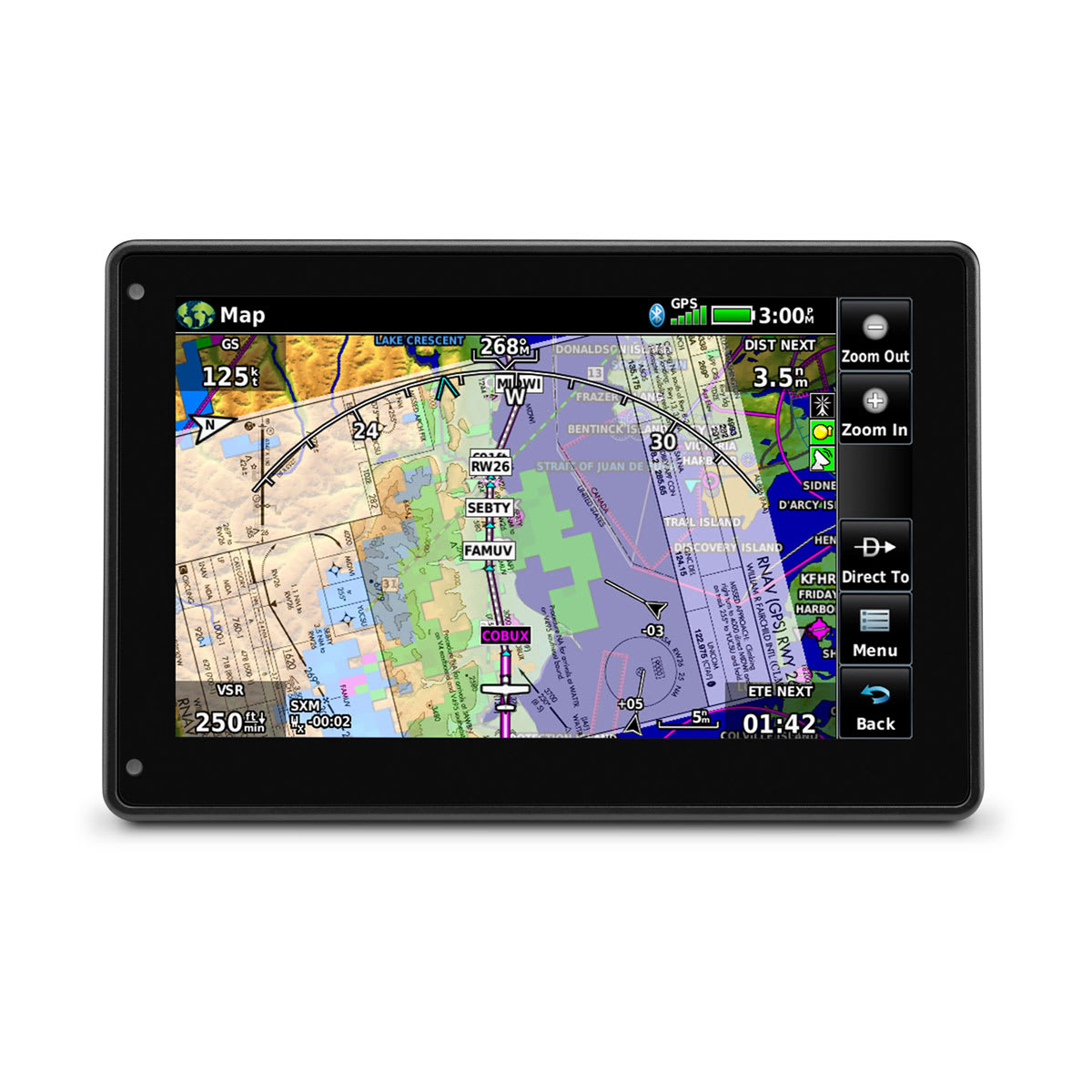

View georeferenced VFR sectional charts for the U.S., Canada and Europe, or use IFR map mode for high and low enroute airways. Touch-enabled map information includes minimum enroute altitudes and distances between intersections.
Flexible Flight Planning
Build routes by entering a starting waypoint and destination, then adding segments such as airways, IFR departures, arrivals and approaches. The on-screen Direct-to key and nearest-airport and flight-plan waypoint menus support fast course entry.
Optional Traffic And Weather
Available Garmin ADS-B “In” solutions can provide ADS-B traffic targets and subscription-free U.S. weather data. TargetTrend™ relative motion tracking and TerminalTraffic™ display add traffic context when supported ADS-B information is available.
Display And Map Control
The bright, sunlight-readable 7-inch touchscreen uses pinch-to-zoom and panning controls for direct map interaction. GPS and GLONASS satellite reception supports rich, interactive and customizable aviation maps, while terrain, obstacles, airports and cities provide useful ground references for VFR position awareness. The WVGA color TFT display has white backlighting and a 480 x 800 resolution.
Airport And Airspace Context
Georeferenced SafeTaxi diagrams automatically help track aircraft location after landing at hundreds of airports and identify published hot spots. Smart Airspace™ guidance highlights airspace nearest the current altitude, helping pilots identify their position relative to surrounding airspace. The navigator also supports IFR approaches, arrivals and departures.
Connected Avionics Options
With an optional power/data cable, the aera® 760 can find and upload frequencies to select radios, including most Garmin GTR™ series COMM radios and GNC® series NAV/COMM radios. It can interface with the GFC™ 500 digital autopilot for coupled lateral and VFR vertical guidance, and flight plans can be transferred wirelessly to select Garmin systems. Pairing with an optional GDL® 51 or GDL 52 datalink receiver adds SiriusXM satellite weather coverage and audio entertainment features.
Not sure this is the right fit for your aircraft?
Avionics compatibility can vary based on your aircraft, existing equipment, and planned installation. Give Neal Avionics a call or send us an email—we’ll be happy to help you review the product and determine whether it fits your needs.
ADVANCED PORTABLE AVIATION NAVIGATION WITH A 7-INCH DISPLAY
Fly confidently with our rugged, reliable, purpose-built GPS for flight – including IFR approaches, arrivals and departures.
BRIGHT SCREEN
The bright, sunlight-readable 7-inch touchscreen display has intuitive pinch to zoom and panning controls and can be positioned in portrait or landscape orientations.
DYNAMIC MAPS
Quickly and reliably acquire GPS and GLONASS satellite constellations to display rich, interactive, dynamically drawn and customizable aviation maps.
FLIGHT PLANS
Creating flight plans is easy. Enter a starting waypoint and destination, then insert segments — including airways as well as IFR departures, arrivals and approaches.
DIRECT-TO NAVIGATION
A Direct-to key on the screen lets you quickly enter a direct course for any selected waypoint. A menu of nearest airports and flight plan waypoints makes for easy entry.
MAP TOPOGRAPHY
View ground references — including airports, cities, terrain, obstacles and more — on the dynamic map display to easily determine your position on VFR flights.
VFR SECTIONAL CHARTS
View georeferenced VFR sectional charts for the U.S., Canada and Europe.
IFR ENROUTE CHARTS
Use IFR map mode to display and navigate on high or low enroute airways. Touch to view minimum enroute altitudes and distances between intersections.
COMM CONNECTION
With an optional power/data cable, you can find and upload frequencies to select radios, including most of our GTR™ series COMM radios, GNC® series NAV/COMM radios and more.
COCKPIT INTEGRATION
Interface the aera 760 navigator with the GFC™ 500 digital autopilot for coupled lateral and VFR vertical guidance, and transfer flight plans wirelessly to select Garmin systems.
ADS-B DATALINKS
With available Garmin ADS-B “In” equipage solutions, aera 760 displays ADS-B traffic targets as well as subscription-free U.S. weather data — either wirelessly or with an optional power/data cable.
TARGETTREND™ TRACKING
Patented TargetTrend relative motion tracking on aera 760 gives pilots faster, more intuitive ways to judge traffic closure rates and trajectories — so you can identify the greatest threat.
TERMINALTRAFFIC™ DISPLAY
Providing a dynamic display of ADS-B-equipped aircraft and ground vehicles, this technology helps pilots avoid traffic conflicts within the airport environment.
SIRIUSXM SERVICE
When paired with an optional GDL® 51 or GDL 52 datalink receiver, the aera 760 navigator can incorporate SiriusXM satellite weather coverage — plus audio entertainment features.
SAFETAXI DATABASE
Upon landing, georeferenced SafeTaxi diagrams on aera 760 automatically help track your location on hundreds of airports and even identify published hot spots.
SMART AIRSPACE™ FEATURE
Our patented Smart Airspace guidance highlights the airspace nearest your current altitude so you can quickly identify your location relative to the airspace around you.
3D VISION
3D Vision technology gives you a virtual 3D behind-the-aircraft perspective view of surrounding terrain, obstacles and airports as well as traffic (when equipped with ADS-B “In”).
SYNTHETIC VISION
View SVX™ synthetic vision by panel-mounting your aera 760 and using its built-in AHRS or by connecting it to another device with an AHRS, such as a GDL 52 series datalink.
TERRAIN ALERTING
See your position above terrain and obstacles on the map and profile view. Obstacles within 1,000’ (or a pilot-customizable height) are highlighted yellow, while obstacles within 100’ are highlighted red.
WIREAWARE TECHNOLOGY
Our WireAware wire-strike avoidance technology graphically overlays hazardous obstacle transmission lines that span rivers and canyons right on the moving map.
STREET INTERSECTIONS
Optional maps allow pilots to enter street intersections and other non-aviation waypoints for easy navigation.
ELECTRONIC FLIGHT BAG
The aera 760 GPS navigator fulfills the role of an electronic flight bag, with georeferenced charts, a PDF viewer, E6B computer, weight-and-balance calculator, logbook and more.
WI-FI UPDATES
View internet weather on the ground for preflight planning, and update databases at home via Wi-Fi connectivity. Plus, stay current throughout the year with a single annual subscription that includes all the databases you need.
FUEL PRICES
Fuel price data can be overlaid on the map — or viewed on the airport directory page — for at-a-glance awareness of the prices in an area.
AIRPORT INFORMATION
Touch an airport symbol on the map to view its airport information page, and see runways, frequencies, NOTAMs, FBOs and more.
BATTERY LIFE

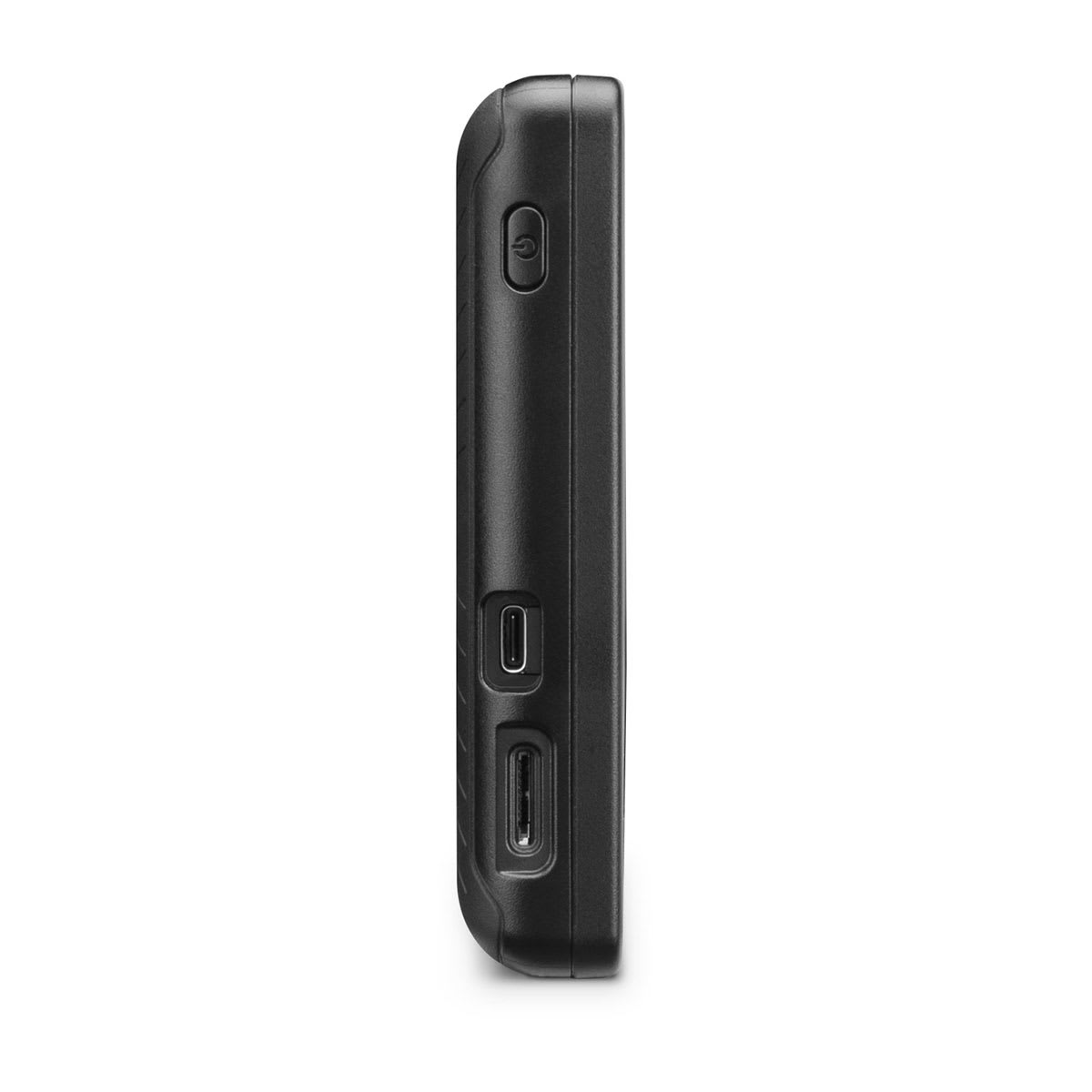

Get up to 4 hours of flight time on each charge, or easily power it in-flight with a USB-C® cable.
DEDICATED PARTNER
aera 760 combines many of the capabilities of panel-mounted avionics with a value-packed, purpose-built package. It’s ready to fly, right out of the box.
Price quoted reflects manufacturer’s suggested retail price (MSRP) for the United States and (may vary by country and region). For more complete pricing information, please contact an authorized Garmin aviation dealer.
Specifications, Compatibility & Documentation
Review detailed technical specifications, compatible avionics interfaces and available product documentation for the Garmin aera® 760 - 010-02303-00. This information can help aircraft owners and operators understand the product’s physical requirements, supported equipment and installation considerations.
Specifications and compatibility information are provided for general reference and may change without notice. Final aircraft eligibility, approved configuration, equipment compatibility and installation requirements must be confirmed by Neal Avionics before installation.
