10.6-Inch Landscape Format
The wide 1280 × 768 display provides room for full-screen PFD or MFD presentation, combined PFD/MFD layouts and available engine information along the edge of the display.
Skip to product information
More Display Area.
01 / LARGE DISPLAY
02 / SITUATIONAL AWARENESS
03 / CONNECTIVITY
Watch G3X Touch for Certificated Aircraft
PFD
MFD
EIS
VFR Navigation
IFR Integration
Flight Controls
Traffic and Weather
Wireless Cockpit
Redundancy
Product Information
$8,995.00
Sale price
$8,995.00
Regular price
Interfaces
| Interface | Manufacturer | Model |
|---|---|---|
| Standby Instruments | Garmin | G5 |
| Standby Instruments | GI 275 | |
| GPS/Nav/Comm | Garmin | GNS 4XX(W)/5XX(W) |
| GPS/Nav/Comm | GNS 480 | |
| GPS/Nav/Comm | GTN Xi Series | |
| GPS/Nav/Comm | GTN Series | |
| GPS/Nav/Comm | GNC 300XL/GPS 155XL | |
| GPS/Nav/Comm | GNC 255 | |
| GPS/Nav/Comm | SL 30 | |
| GPS/Nav/Comm | SL 40 | |
| GPS/Nav/Comm | GTR 225 | |
| GPS/Nav/Comm | GPS 175 | |
| GPS/Nav/Comm | GNC 355 | |
| GPS/Nav/Comm | GNX 375 | |
| Transponders/Datalinks | Garmin | GTX 33 (ES) |
| Transponders/Datalinks | GTX 330 (ES) | |
| Transponders/Datalinks | GTX 32 | |
| Transponders/Datalinks | GTX 327 | |
| Transponders/Datalinks | GTX 328 | |
| Transponders/Datalinks | GTX 325/335/335R/345/345R | |
| Transponders/Datalinks | GNX 375 | |
| Transponders/Datalinks | GDL 50R/51R/52R | |
| Transponders/Datalinks | GTS 8XX | |
| Autopilots | Garmin | GFC 500 |
| Autopilots | Century¹ | 1C388 (M, C, MC, -2, -3) |
| Autopilots | 2000 | |
| Autopilots | 21 | |
| Autopilots | 31 | |
| Autopilots | 41 | |
| Autopilots | IV | |
| Autopilots | Cessna¹ | 300(B) IFCS |
| Autopilots | 400(B) IFCS | |
| Autopilots | 800(B) IFCS | |
| Autopilots | Honeywell / Bendix King¹ | KAP 100/140/150/200 |
| Autopilots | KFC 150/200/225 | |
| Autopilots | S-TEC¹ | System 20/30/40/50/55/55X/60/65 |
| Autopilots | Piper¹ | Autocontrol III/IIIB |
| Autopilots | Altimatic III/IIIB-1/IIIC |

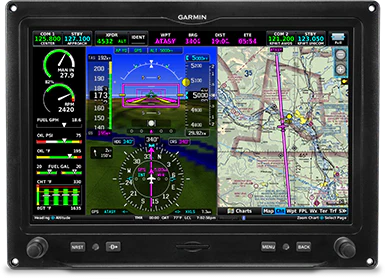

Garmin G3X Touch GDU 460 10.6-Inch Landscape PMA Display | 010-02319-00
Garmin G3X Touch™ GDU 460, PMA, Standard — 10.6" Landscape Flight Display brings primary flight, multifunction and optional engine indication capability to eligible certificated single-engine piston aircraft in a large touchscreen format. Part number 010-02319-00 provides a high-resolution landscape display with standard SVX™ synthetic vision, internal navigation capability for VFR use and built-in Connext® wireless connectivity.
Large 10.6-Inch Landscape Display
The GDU 460 uses a 10.6" diagonal landscape display with 1280 × 768 resolution and a high-resolution infrared touchscreen interface. Its wide format provides room for full-screen PFD or MFD presentation, combined PFD/MFD layouts and an available engine-information strip while retaining dual-concentric knobs for tactile control.
PFD, MFD And Optional EIS Capability
Configure the GDU 460 to present primary flight, multifunction or combined PFD/MFD information within an approved G3X Touch installation. When paired with a compatible GEA™ 24 engine interface and approved sensor package, the display can also present primary engine gauges, operating ranges, fuel information and alerts.
Synthetic Vision And Wireless Connectivity
Standard SVX synthetic vision provides a three-dimensional depiction of terrain, obstacles, water features, airports and the runway environment. Built-in Connext connectivity supports compatible wireless flight-plan transfer and sharing of selected GPS position, attitude, traffic and weather information with supported mobile devices.
Primary Flight And Multifunction Display Capability
The GDU 460 can serve as the primary display in a large single-screen certified G3X Touch installation or as part of an approved multidisplay system. In a compatible PFD configuration, it presents attitude, airspeed, altitude, vertical speed, heading, navigation guidance, flight director information and other essential flight data supplied by the connected ADAHRS and avionics. Multifunction presentation can include moving maps, flight plans, waypoint information, terrain, obstacles, VFR sectionals, IFR enroute charts, geo-referenced approach charts and available traffic or weather information. The wide screen can also combine primary flight and multifunction windows to keep several types of information visible at the same time.
VFR Navigation And External IFR Integration
G3X Touch includes internal navigation capability for standalone VFR operation, including position, moving-map, flight-plan and vertical-navigation functions. The internal navigation source must not be represented as an approved source for instrument approach navigation. Approved IFR guidance requires a compatible external GPS navigator or NAV/COMM, appropriate databases, approved wiring interfaces and a properly configured aircraft installation. In supported systems, G3X Touch can also interface with the Garmin GFC™ 500 autopilot for flight director and fully coupled approach capability.
Display Specifications And System Planning
The GDU 460 has a 10.6" diagonal landscape display with 1280 × 768 resolution and measures approximately 10.85" wide by 7.82" high by 3.57" deep, with the published depth including the recommended backshell. Published unit weight is approximately 4.6 pounds without the nut plate and connector. It accepts 10–32 VDC input power and has a published maximum load of 28 watts. Part number 010-02319-00 should not be treated as a complete installed G3X Touch system unless the listing specifically identifies all accompanying equipment. ADAHRS, magnetometer, temperature probe, engine interface, sensors, external navigator, standby instrument and installation hardware may need to be selected separately.
Not sure this is the right fit for your aircraft?
Certified G3X Touch installations require professional system planning and installation. Aircraft eligibility, approved display location, ADAHRS and magnetometer requirements, external navigator compatibility, engine monitoring equipment, autopilot integration, standby instrumentation, transponder and datalink interfaces, antennas, connector kits and wiring must be confirmed for the specific aircraft. Contact Neal Avionics before ordering so we can verify part number 010-02319-00 and help identify the additional components required for your installation.
Certified 10.6-Inch Landscape Flight Display
Garmin G3X Touch GDU 460
PMA, STANDARD | PART NUMBER 010-02319-00
| UPC 753759387723
Modernize an eligible certificated single-engine piston aircraft with a large touchscreen glass display offering primary flight, multifunction and optional engine indication capability in a spacious 10.6-inch landscape format.
Aircraft Category
Eligible Certified Aircraft
Display Format
10.6-Inch Landscape
Internal Navigation
VFR GPS
Display Roles
PFD / MFD
Engine Display
Optional
Large-Format Glass Cockpit Capability
More Display Area.
More Information at a Glance.
The Garmin GDU 460 brings the familiar G3X Touch operating environment to eligible certificated single-engine piston aircraft in a large 10.6-inch landscape display. Its configurable presentation can place primary flight instruments, moving maps, flight-plan information and available engine data together on one screen.
Standard Synthetic Vision
SVX™ synthetic vision creates a three-dimensional depiction of terrain, obstacles, water features, airports and the runway environment to help improve visual awareness.
Wireless Connext Capability
Built-in Connext® technology supports compatible wireless flight-plan transfer and sharing of selected GPS position, attitude, traffic and weather information with mobile devices.
Important GDU 460 Standard Configuration Information
Part number 010-02319-00, UPC 753759387723, identifies the GDU 460 10.6-inch landscape PMA display in its standard configuration. Do not assume that this individual SKU includes every component required for a complete G3X Touch installation. ADAHRS, magnetometer, temperature probe, connector and installation kits, external navigator, engine interface, sensors, antennas and other equipment must be verified separately.
G3X Touch for Certificated Aircraft
See the Certified System in Action
Watch Garmin Aviation’s introduction to the scalable G3X Touch flight display system for certificated single-engine piston aircraft.
Watch G3X Touch for Certificated Aircraft
Configurable Display Roles
PFD, MFD and Optional Engine Information
The large landscape display can dedicate the screen to one major function or combine multiple information windows within an approved G3X Touch installation.
Primary Flight Display
Present attitude, airspeed, altitude, vertical speed, heading, navigation guidance, flight director information and other essential flight data supplied by the approved system sensors and connected avionics.
Multifunction Display
Display moving maps, flight plans, waypoint information, terrain, obstacles, charts and available traffic or weather information in compatible system configurations.
Optional Engine Information
When connected to a compatible GEA™ 24 and approved sensor package, the GDU 460 can display engine gauges, operating ranges, alerts, fuel information and other monitored aircraft-system values.
Primary Flight and Mapping
Use the Screen for the Information You Need
The wide-format display can present a large primary flight view, an expansive moving map or a combined PFD/MFD layout. Touchscreen controls and dual-concentric knobs provide direct access to flight planning, navigation, map and compatible avionics functions.
Display layouts, available data and control functions depend on
the approved installation, software configuration and connected
avionics.
Optional Engine Monitoring
Place Primary Engine Data on the Display
Add a compatible GEA 24 engine interface and approved sensor package to present primary engine information through G3X Touch. Available data can include temperatures, pressures, RPM, fuel, electrical values, operating ranges and alerts.
The GEA 24, engine sensors and associated installation equipment
are not included unless specifically identified in the purchased
package.
Scalable Panel Architecture
Install One Display or Build a Larger System
The GDU 460 can support a large single-display installation or become part of an approved multidisplay G3X Touch panel. Compatible multidisplay arrangements can provide additional screen space and reversionary presentation.
Aircraft eligibility, display locations and permitted system
layouts must be confirmed through current Garmin AML STC and
installation documentation.
GDU 460 System Capabilities
Designed to Integrate with the Rest of the Panel
The GDU 460 serves as the pilot interface for a configurable system of sensors, navigators, flight controls, traffic equipment, datalinks and other compatible avionics.
Internal VFR GPS Capability
G3X Touch can provide position, moving-map, flight-plan and vertical-navigation functions as a standalone navigator for visual operations.
The internal navigation capability must not be represented as an
approved source for IFR approach navigation.
Connect a Compatible IFR Navigator
Pair G3X Touch with an approved compatible GPS navigator or NAV/COMM to display IFR navigation guidance, procedures and geo-referenced chart information.
IFR capability depends on the external navigator, databases,
approved interfaces, wiring and aircraft configuration.
GFC 500 Autopilot Integration
In approved installations, G3X Touch can interface with the Garmin GFC™ 500 autopilot and compatible navigator to provide flight director guidance and fully coupled approach capability.
Connect Compatible ADS-B and Datalink Equipment
Compatible transponders and datalink receivers can provide ADS-B traffic, subscription-free weather, SiriusXM® weather and other awareness information for display on G3X Touch.
Connext Mobile Connectivity
Transfer compatible flight plans and share selected GPS position, attitude, traffic and weather information with supported Garmin Pilot™, FltPlan Go and ForeFlight Mobile devices.
Expandable Display Options
Approved multidisplay configurations can provide additional PFD or MFD screen space and reversionary presentation. A compatible G5 or GI 275 may provide standby-instrument capability in supported aircraft.
Display Highlights
Core GDU 460 Advantages
- 10.6-inch diagonal landscape display
- 1280 × 768 pixel resolution
- High-resolution infrared touchscreen
- Dual-concentric physical control knobs
- Primary flight display capability
- Multifunction display capability
- Combined PFD/MFD presentation
- Optional engine indication strip
- Standard SVX synthetic vision
- Internal navigation capability for VFR use
- Compatible external IFR navigator integration
- Moving maps and graphical flight planning
- VFR sectional and IFR enroute chart display
- Geo-referenced approach chart capability
- SafeTaxi® airport diagrams
- Available ADS-B traffic and weather
- Available SiriusXM aviation weather
- Garmin Connext wireless connectivity
- Compatible GFC 500 autopilot integration
- Compatible GEA 24 engine interface integration
- Available multidisplay reversionary capability
- Compatible radio control and frequency tuning
- Dual isolated power inputs
- Designed for approved certified-aircraft installations
Choose the Correct Display Format
Certified G3X Touch Display Comparison
The GDU 460 provides the larger landscape display, while the GDU 470 provides a compact portrait option. Final display selection should be based on available panel space and the approved system layout.
| Display | Format | Resolution | Maximum Size | Weight |
|---|---|---|---|---|
|
GDU 460
010-02319-00 This Product |
10.6-Inch Landscape | 1280 × 768 | 10.85 × 7.82 × 3.57 in | 4.6 lb |
|
GDU 470
010-02318-00 |
7-Inch Portrait | 480 × 800 | 6.00 × 7.82 × 3.68 in | 2.65 lb |
GDU 460 Unit Specifications
Large Certified Display Hardware
Confirm final mounting, connector, backshell, cooling and clearance requirements using the current approved Garmin installation data.
Display
10.6 Inches
269.2 mm diagonal
Resolution
1280 × 768
Landscape orientation
Unit Dimensions
10.85 × 7.82 × 3.57 in
Approx. 275.5 × 198.6 × 90.7 mm
Unit Weight
4.6 Pounds
Excludes nut plate and connector
Input Voltage
10–32 VDC
Dual isolated power inputs
Maximum Power
28 Watts
Published maximum load
Touch Interface
Infrared
High-resolution color touchscreen
Certification
PMA
Approved installation required
Ownership and Support
Prepare for Your G3X Touch System
Garmin provides pilot documentation, training resources, database services and aviation product support for certified G3X Touch systems.
Manuals and Approvals
Review the current certified-aircraft pilot guide, AML STC, installation manual and approved equipment configuration before finalizing the panel.
G3X Touch Training
Use Garmin training videos, webinars, seminars and available trainer resources to become familiar with display operation before flying the completed system.
Garmin Product Support
G3X Touch is supported by Garmin’s aviation support organization and the warranty coverage applicable to the purchased equipment.
Neal Avionics System Planning
Not Sure This Is the Right G3X Touch Display?
The GDU 460 is one component of a complete certified G3X Touch installation. Aircraft eligibility, approved display location, ADAHRS, magnetometer, temperature probe, external navigator, autopilot interfaces, engine-monitoring equipment, standby instrumentation, transponder, datalink, antennas, connector kits, wiring and installation labor must all be evaluated for the specific aircraft. Contact Neal Avionics before ordering so we can confirm part number 010-02319-00 and identify the additional equipment required for your panel.
Professional installation required
Aircraft eligibility must be verified
Internal navigation is VFR only
Additional system equipment may be required
Specifications, Compatibility & Documentation
Review detailed technical specifications, compatible avionics interfaces and available product documentation for the Garmin G3X Touch GDU 460 10.6-Inch Landscape PMA Display | 010-02319-00. This information can help aircraft owners and operators understand the product’s physical requirements, supported equipment and installation considerations.
Specifications and compatibility information are provided for general reference and may change without notice. Final aircraft eligibility, approved configuration, equipment compatibility and installation requirements must be confirmed by Neal Avionics before installation.
