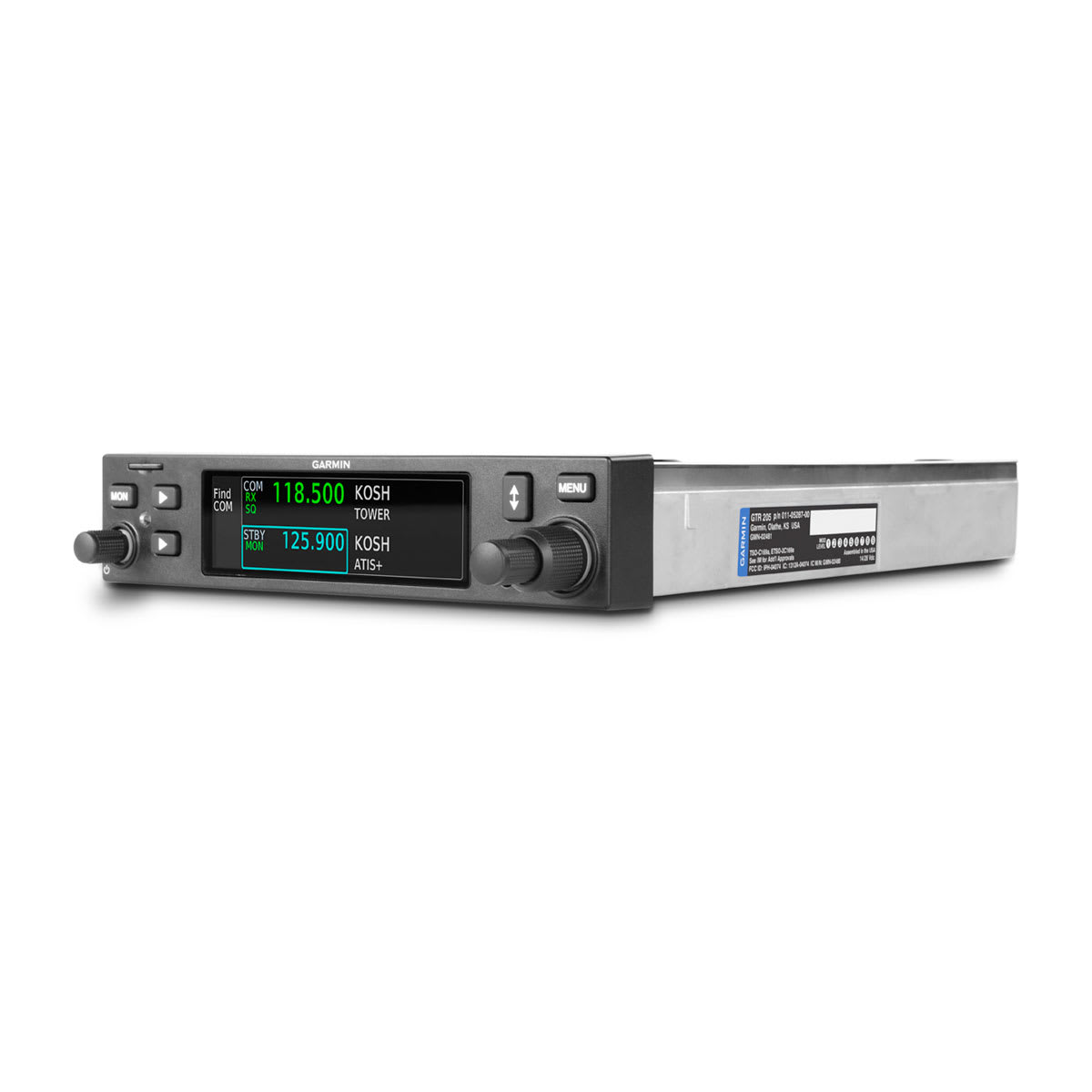

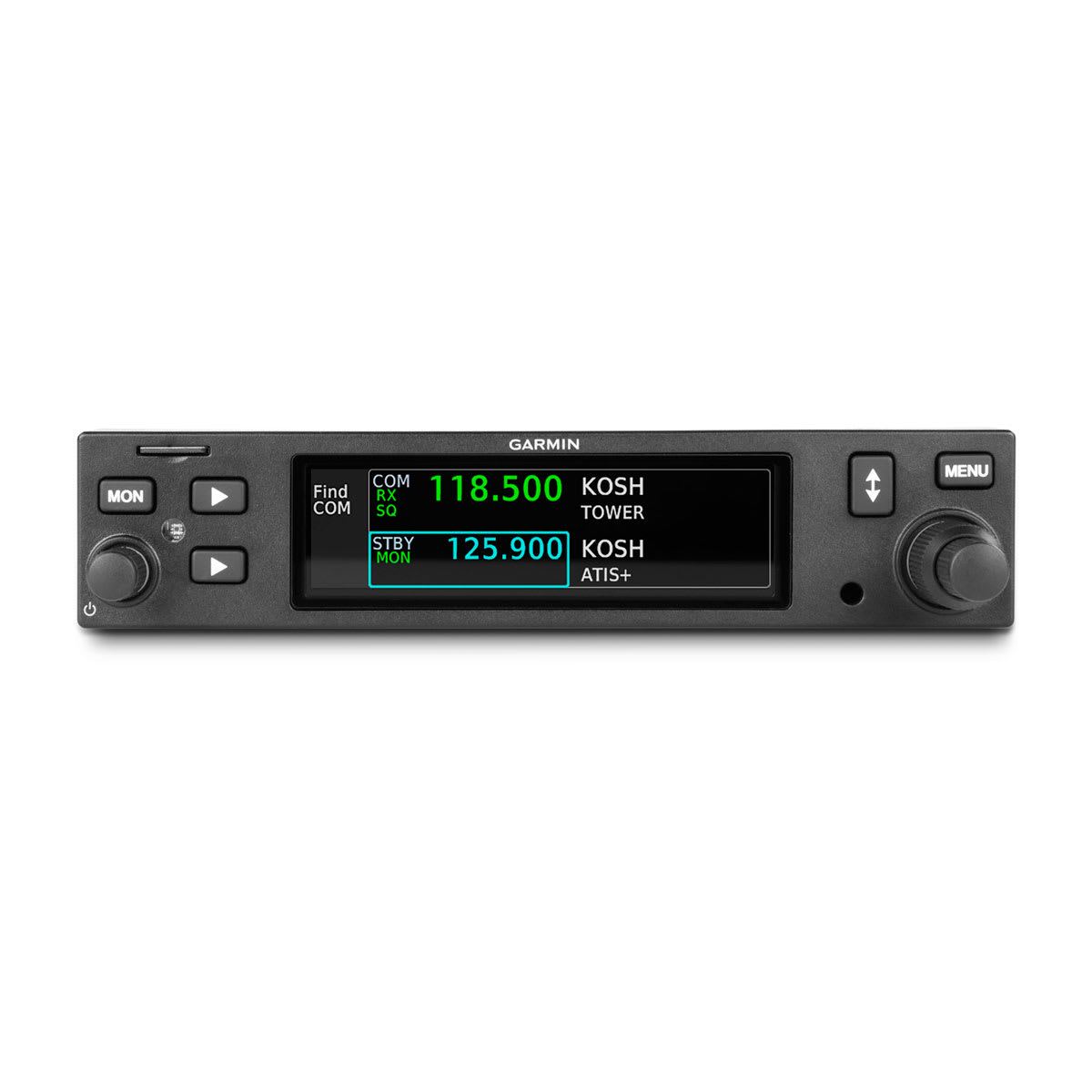

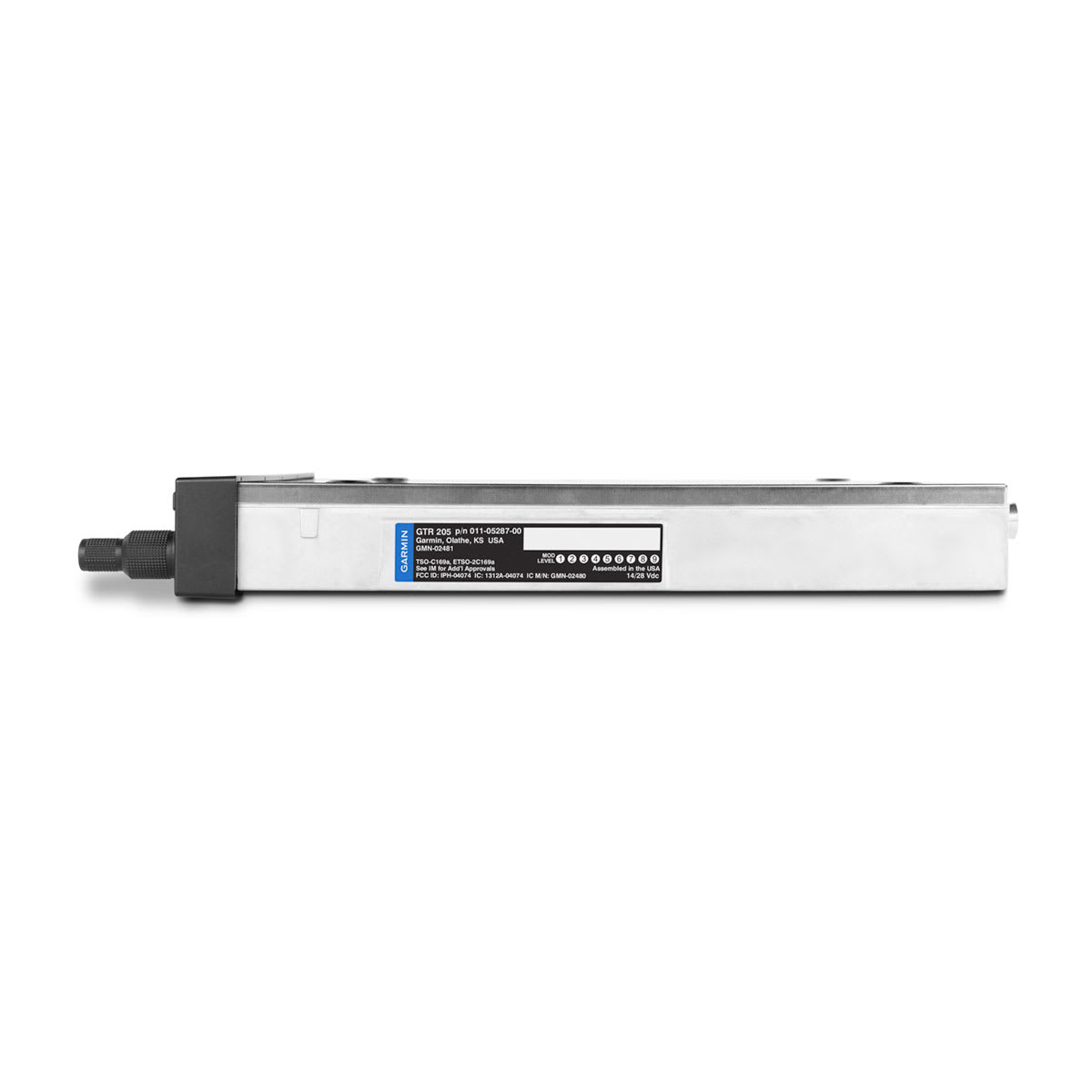

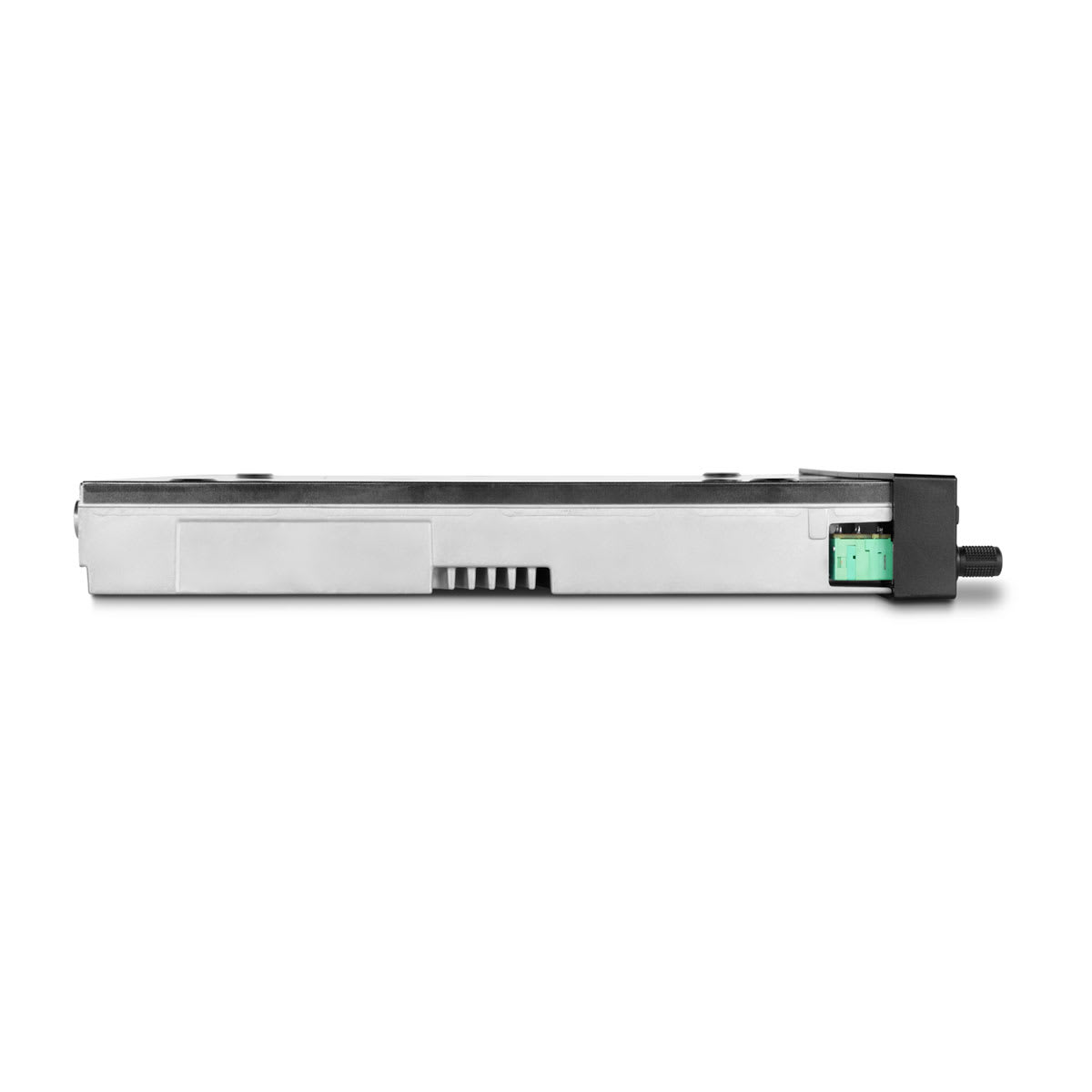

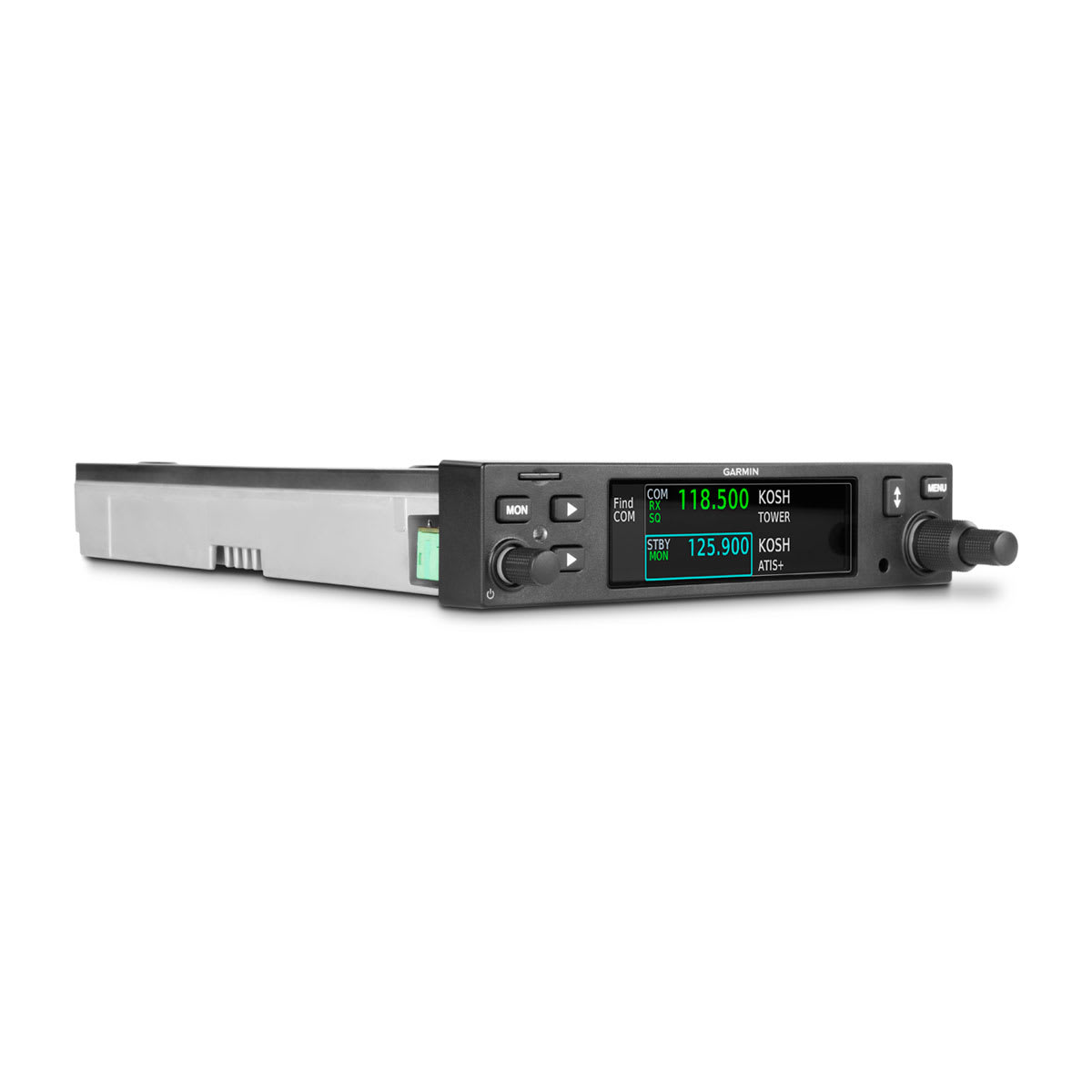

Garmin GTR 205 - 010-02480-01
Garmin GTR 205 is a slimline VHF COMM radio that combines aircraft communications with integrated audio and intercom functions. Its full-color LCD, frequency lookup, and 1.3” bezel height make it a practical panel upgrade for aircraft owners seeking modern COMM capability in a compact format.
Faster Frequency Management
Reduce tuning steps with airport frequency lookup from the worldwide database, frequency memory and recall, and one-touch active/standby frequency swapping. A press and hold of the volume knob selects 121.5 emergency frequency.
Integrated Crew Audio
Communicate through the built-in two-place intercom, with pilot isolate to keep COMM communications in focus. Auto squelch, 3D Audio processing, and EQ settings support clearer management of cockpit audio.
Connected Audio Control
Stream music from a paired compatible device and control playback from the GTR 205 display. Bluetooth connectivity also supports incoming-call information and call control on the display.
COMM Radio Capability
The 2,280-channel capable VHF COMM transceiver provides standard 10 watts of transmit power, with optional 16 watts available through enablement. Pilots can select 25 kHz or 8.33 kHz channel spacing and use either automatic or manual squelch. Standby COMM monitoring allows listening to a second frequency, such as ATIS, while remaining on the active channel.
Panel And Display Integration
When paired with a compatible GPS source, Frequency ID can display the identifier and type of the tuned frequency, including tower, ATIS, and center. The GTR 205 can also be remotely tuned from an AXIS™ Flight Display or G3X Touch™ flight display touchscreen. Its built-in timer can count up or down for approaches, holds, and other assigned maneuvers.
Configurable Audio Expansion
Optional software enablement can expand the intercom from two places to four places and add dual-COMM switching, allowing the GTR 205 to function as an audio panel for a second COMM radio. Optional COMM playback and NVIS enablement provide additional configuration choices. Firmware updates are free and field loadable by micro-SD card.
Not sure this is the right fit for your aircraft?
Avionics compatibility can vary based on your aircraft, existing equipment, and planned installation. Give Neal Avionics a call or send us an email—we’ll be happy to help you review the product and determine whether it fits your needs.
MEET THE ALL-IN-ONE COMM AND AUDIO SOLUTION
Upgrade your COMM radio with the modern, cost-effective slimline GTR 205 radio, and add advanced communication and audio entertainment capabilities to your panel.
BUILT-IN INTERCOM
Communicate clearly with your co-pilot via the included two-place intercom. Expand to a four-place intercom with an optional software enablement.
ADVANCED AUDIO PROCESSING
With auto squelch, 3D Audio processing, EQ settings and optional COMM playback, GTR 205 ensures you have modern audio capabilities.
CONNECT A SECOND COMM
With optional dual-COMM switching, GTR 205 can act as an audio panel and allow you to talk via and/or monitor a second COMM radio.
VHF COMM TRANSCEIVER
The 2,280-channel capable VHF COMM radio offers standard 10 watts (or optional 16 watts with enablement) of transmit power plus pilot-selectable 25 kHz or 8.33 kHz channel spacing and automatic or manual squelch. Swap your active and standby frequencies with a single touch of a button.
FIND A FREQUENCY
Enter an airport identifier, and let the GTR 205 radio look up frequencies for that location (tower, ground, ATIS, clearance delivery and more) from its worldwide database. Then, send the selected frequency to the standby position.
FREQUENCY ID
Pair with your compatible GPS source to enable frequency ID, and show your tuned frequency’s identifier and type, including tower, ATIS, center and more. So you know who you’re talking to.
STANDBY COMM MONITORING
Listen to a standby frequency, such as ATIS, without leaving your active channel.
INSTANT RECALL
With frequency memory and recall, you can quickly tune your most frequently or recently used frequencies. Plus, holding down the volume knob will dial up the 121.5 emergency frequency.
BUILT-IN TIMER
Use the built-in timer to assist with approaches, holds and other assigned maneuvers — with the option to count up or count down.
NVG COMPATIBLE
For demanding night missions, GTR 205 is available with an optional NVIS enablement.
REMOTE TUNING
Pair the GTR 205 radio with your AXISTM Flight Display or G3X Touch™ flight display, and remotely tune your radio via your flight display touchscreen.
BUILT-IN INTERCOM
Communicate clearly with your co-pilot via the built-in two-place intercom, which is expandable to four place. The pilot-isolate feature allows you to focus on COMM radio communications without interruptions.
AUTO SQUELCH TECHNOLOGY
Auto squelch allows GTR 205 to automatically sense noise levels in the cockpit and adjust the mic squelch for easy intercom use regardless of the cockpit noise level.
3D AUDIO PROCESSING
With your stereo headset, hear each audio source as if it’s coming from a unique location — so it’s easier to differentiate between sources.
BLUETOOTH CONNECTIVITY
Pair with your smartphone or other compatible device to stream music and see song and artist on the GTR 205 display — and play, pause, skip or repeat tracks without needing to access your device. Plus, receive incoming calls, view phone numbers, end calls, and see your device’s signal strength and battery life right on the display.
EQ SETTINGS
Music settings allow you to select enhanced bass boost levels as well as equalizer effects that include rock, classical and pop audio profiles.
AUXILIARY INPUTS
GTR 205 offers up to four mono AUX inputs for audio alerts and more. Two channels may be combined for stereo audio input.
FOUR-PLACE INTERCOM
With the purchase of an optional enablement, GTR 205 can offer audio panel features. This includes a four-place intercom, providing you volume control for the pilot, co-pilot and passengers — with individual mic inputs for all four positions.
DUAL-COMM SWITCHING
Connect a second COMM radio via an AUX input. Switch between either radio — or monitor both at once. In event of a power loss, a backup mode will automatically connect the pilot’s headset to the second radio.
COMM PLAYBACK
Record up to 150 seconds of prior transmissions. Easily browse clips and playback clearances, missed radio calls and more. Customizable softkeys make it easy to access transmissions.
Radio Type
GNC 215 NAV/COMM units include a VHF NAV radio in addition to a COMM radio.
Specifications, Compatibility & Documentation
Review detailed technical specifications, compatible avionics interfaces and available product documentation for the Garmin GTR 205 - 010-02480-01. This information can help aircraft owners and operators understand the product’s physical requirements, supported equipment and installation considerations.
Specifications and compatibility information are provided for general reference and may change without notice. Final aircraft eligibility, approved configuration, equipment compatibility and installation requirements must be confirmed by Neal Avionics before installation.
