Garmin GTN™ 750Xi - 010-02002-05
The Garmin GTN™ 750Xi is a GPS/NAV/COMM/MFD navigator that consolidates navigation, radio tuning and multifunction display capabilities in a 6.9" touchscreen unit. Its high-resolution display, responsive processing and flexible control options make it a strong choice for pilots seeking a capable central navigator for the panel.
Responsive Map Control
Pan maps with a swipe and change scale with pinch-to-zoom gestures. Dual-core processors support faster zooming, panning and map rendering.
Clear Multifunction Display
The 6.9" display supports multiple inputs for moving maps, terrain, traffic2, weather2, airport diagrams and more. Its 834 pixels (W) x 986 pixels (H) resolution provides almost twice the pixel count of its predecessor.
Flexible Flight Deck Input
Enter frequencies, waypoint identifiers and routings with the on-screen QWERTY keyboard or traditional concentric knobs. The outer knob can cycle through as many as 9 custom-assigned pages, while the inner knob supports functions such as zooming or scrolling.
Integrated Navigation And Radios
The GTN™ 750Xi brings GPS, navigation, communication and multifunction display functions together through its touchscreen interface. In dual GTN Xi installations, remote tuning allows either navigator to tune frequencies on both units, while the Radios page shows selectable Comm and Nav frequencies, including active and standby positions, plus volume levels. Available Telligence™ voice control technology can respond to hundreds of spoken commands with a press of a yoke button2.
Smart Glide Assistance
During an engine power loss situation, Smart Glide technology can help reduce workload by considering estimated glide range, terrain and obstacles to recommend a suitable landing airport or list alternatives. When an airport is available, it can create a Direct-to route and provide airport information, load the airport CTAF frequency into the standby position, and offer a shortcut for entering an emergency code in a compatible transponder. Smart Glide requires a compatible flight display to be paired with GTN Xi; with a compatible Garmin autopilot, it can automatically engage IAS mode at best glide speed using GPS guidance toward the selected airport.
Not sure this is the right fit for your aircraft?
Avionics compatibility can vary based on your aircraft, existing equipment, and planned installation. Give Neal Avionics a call or send us an email—we’ll be happy to help you review the product and determine whether it fits your needs.
TAP INTO A NEW GENERATION OF FASTER, SMARTER AVIONICS
With more pixels, more processing power, more speed and performance, our GTN 750Xi system brings exciting new growth capabilities to the industry’s premier GPS/Nav/Comm/MFD platform.

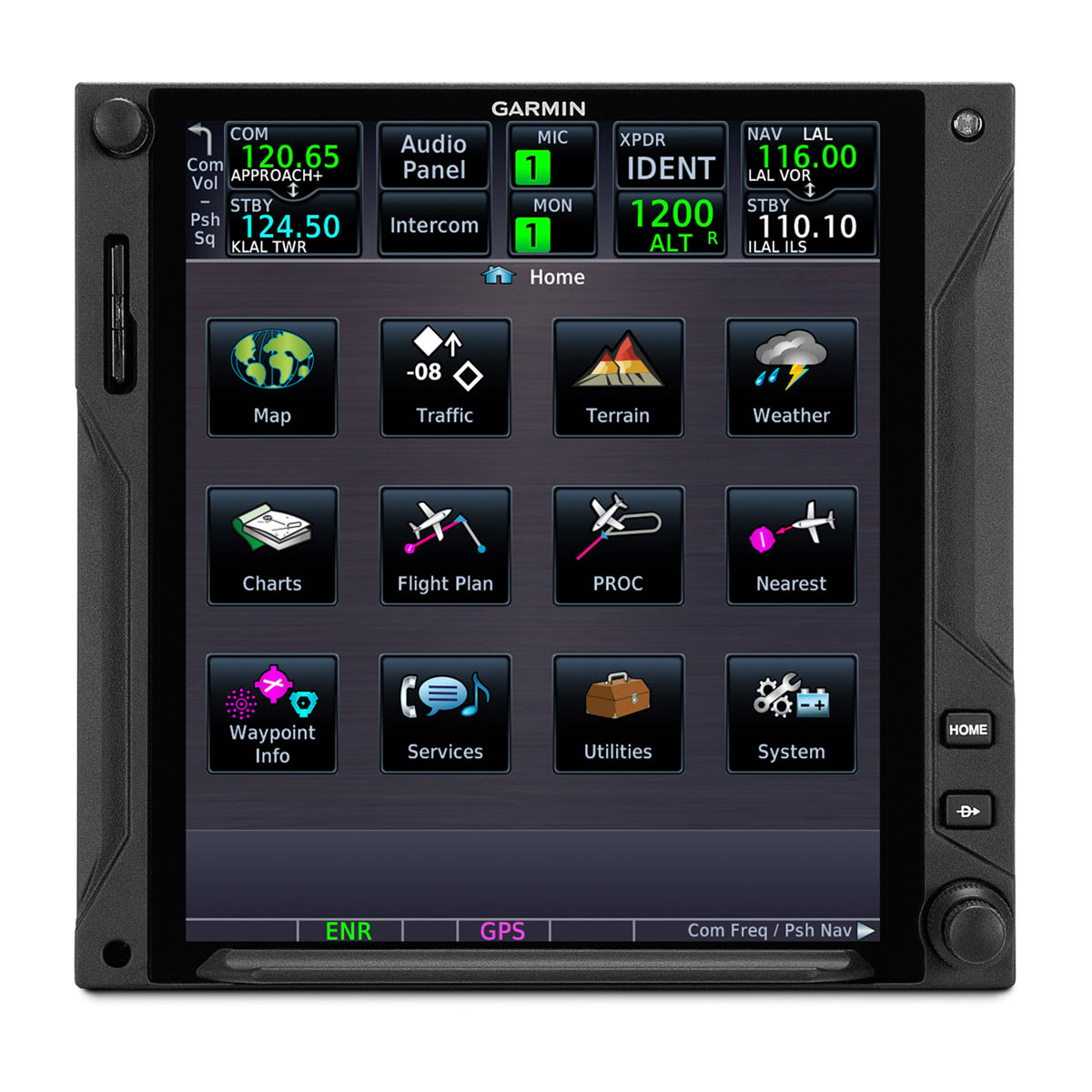

DO-IT-ALL TOUCHSCREEN
Intuitive touchscreen interface provides quick access to navigation, radio tuning, multifunction display features and more.
LIGHTNING-FAST RESPONSE
Powerful dual-core processors boost the GTN Xi series graphical display capabilities — with faster zooming, panning and map rendering on the display.
HIGH-RESOLUTION DISPLAY
With almost double the pixel count of its predecessor, the GTN Xi series features wider viewing angles and one of the highest-resolution displays ever offered in this class of avionics.
MULTIFUNCTION DISPLAY
Supporting multiple inputs, the 6.9” display can put moving maps, terrain, traffic2, weather2, airport diagrams and more at your fingertips.
EASY DATA ENTRY
Use the on-screen QWERTY keyboard or traditional concentric knobs to enter frequencies, waypoint identifiers, routings and more.
REMOTE RADIO CONTROL
In dual GTN Xi installations, remote tuning capability lets you tune frequencies on both units from either navigator. A Radios page displays all selectable Comm and Nav frequencies (active and standby) plus their volume levels.
TELL IT, TUNE IT
Available Telligence™ voice control technology helps reduce pilot workload by responding to hundreds of spoken commands with the press of a button on the yoke2.
PINCH, SWIPE GESTURES
A quick finger swipe lets you pan across the map display. Or use a smartphone-like pinch-to-zoom motion to scale up or down on any map, traffic or terrain page.
QUICK PAGE ACCESS VIA KNOBS
The unit’s dual concentric knob controls now offer quick access to select pages. The outer knob can cycle through as many as 9 custom-assigned pages, with the inner knob supporting functions such as zooming or scrolling on the page displayed.
ENGINE-OUT HELP
In the case of an engine power loss situation, GTN Xi offers Smart Glide technology to help reduce your workload — so you can focus more attention on other tasks during the emergency.
EASY ACTIVATION
Smart Glide requires a compatible flight display to be paired with GTN Xi. The Smart Glide system can be activated with the press of an optional dedicated panel button or by a long press of the Direct-to button.
RECOMMENDS AN AIRPORT
Considering the aircraft’s estimated glide range (including terrain and obstacles), the system recommends a suitable airport for landing and offers a list of alternatives, or it advises if no airport is estimated to be within glide range.
DIRECT-TO ROUTING
If an airport is available, it creates a Direct-to route to the selected airport. And if you’re equipped with a compatible Garmin autopilot, Smart Glide will automatically engage the autopilot in IAS mode at best glide speed — using the GPS guidance to fly the aircraft near the selected airport.
EMERGENCY INFORMATION
Smart Glide provides information for the selected airport and loads the airport CTAF frequency into the GTN Xi standby position while providing a shortcut to enter an emergency code in a compatible transponder.
LANDING
Once the aircraft is near the airport, the pilot resumes control and prepares the aircraft for arrival — for example, bleeding off altitude and making the final approach to the selected runway — then lands the aircraft.

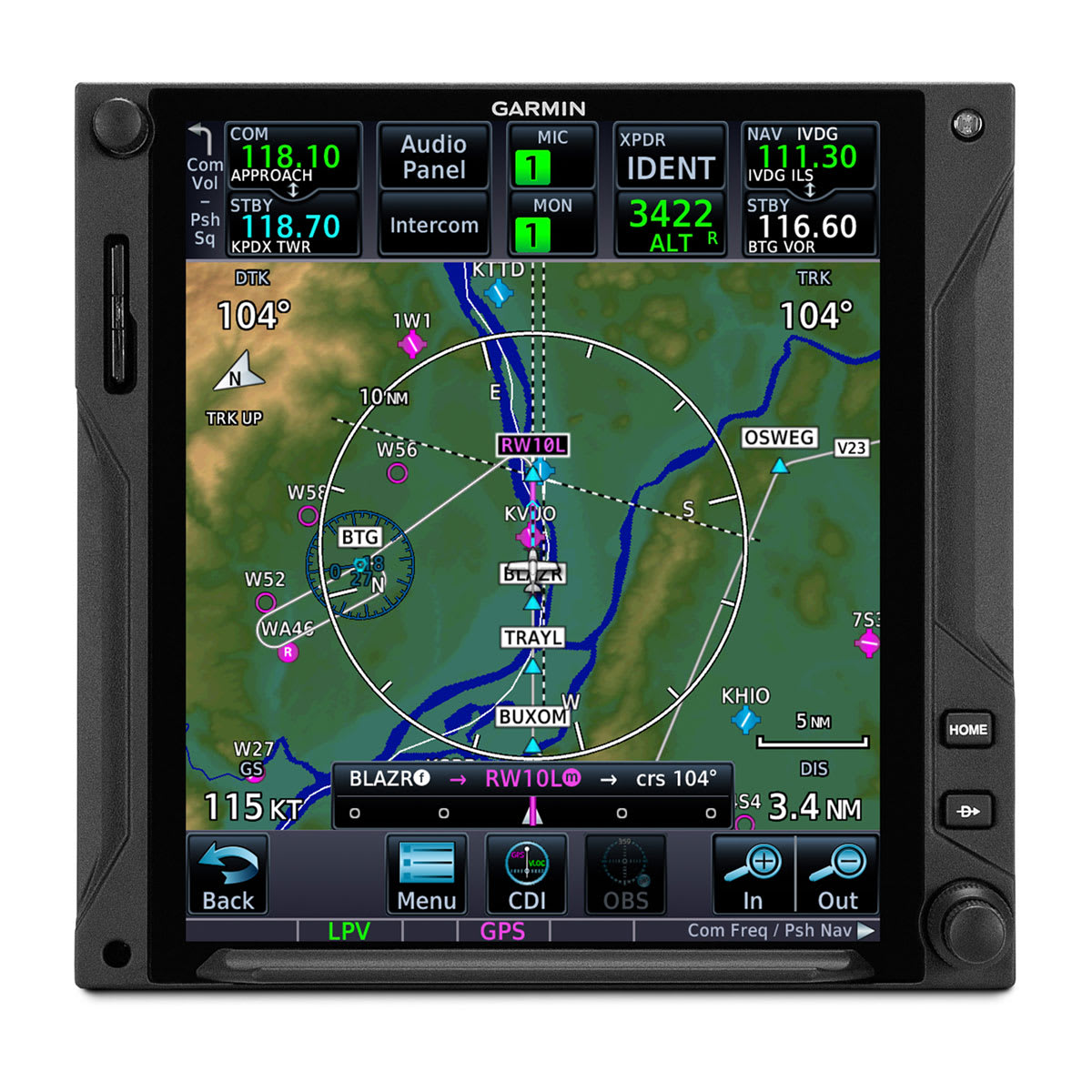

SEE THE FULL PICTURE
Graphical routing on the display lets you visualize your entire flight plan, including departures, arrivals, visual/instrument approaches, holding procedures and more.
FAST FIND
As soon as you start typing, the GTN Xi FastFind feature uses quick predictive logic to suggest airport and waypoint entries by using current GPS position. Just select and go.
AIRWAYS, YOUR WAY
Victor airways and high-altitude jet routes can be overlaid on the map. For easy IFR routings, view airway segments available from a waypoint and corresponding exit options.
“RUBBER BAND” REROUTES
This handy feature lets you grab a flight plan leg on the screen, and then stretch or move it to adjust for a deviation or ATC amendment to your flight plan.
VIRTUAL MAP TOPOGRAPHY
By referencing built-in terrain, mapping and obstacles databases, GTN 750Xi shows detailed surface features, cities, airports, SUAs and more on the dynamic map display.
TERRAIN ALERTING
A built-in database provides color-coded display overlays to warn when potential terrain conflicts loom ahead. Class A or B TAWS alerting is optionally available.
VIEW CHARTS IN CONTEXT
Our standard FliteCharts® or optional Jeppesen® style ChartView™ plates3 provide georeferenced approaches and terminal procedures.
DIRECT CONNECT
A Direct-to key on the bezel lets you quickly enter a direct course for any selected waypoint. A menu of nearest airports and flight plan waypoints makes for easy entry.
MORE APPROACH OPTIONS
The WAAS/SBAS-certified GPS receiver expands your landing options, enabling GPS-guided LPV glidepath approaches down to ILS-comparable minimums as low as 200’.
VHF NAVAID CAPABILITY
In addition to GPS guidance, full VHF navigation capabilities offer complete airspace system access, including VOR/ILS with localizer and glideslope.
AUTO-ASSIST ENTRY
When loading procedures, the GTN Xi series will pre-enter NAV frequencies to standby position for quick access. It also auto-selects the VHF NAV source for ILS approaches.
CLEARED FOR THE VISUAL
GTN Xi can give advisory visual approach guidance based on a published glidepath or a 3-degree slope from the runway threshold (with terrain/obstacle clearance).
AUTOPILOT INTERFACE
Precise course deviation and roll steering outputs can be coupled to select autopilots, enabling virtually all IFR flight procedures to be flown automatically.
HOLDING PATTERNS
IFR pattern entries can be tricky. GTN 750Xi lets you easily create and execute holding patterns over a published or user-defined waypoint.
SEARCH AND RESCUE
For aerial surveillance, common search pattern types — including orbit, parallel line, expanding square and sector search — can be loaded into your flight plan on the GTN 750Xi navigator2.
SUPPORTS VNAV AND MORE
With our GFC™ 500 and GFC 600, GTN 750Xi supports advanced modes and features such as vertical navigation profiles, radius-to-fix legs, missed approaches and more.
SAFETAXI® DATABASE
Upon landing, georeferenced SafeTaxi diagrams on the display automatically help track your location on hundreds of airports.
BUILT-IN COMM TRANSCEIVER
A 2,280-channel capable VHF Comm radio gives GTN 750Xi a standard 10 watts (or optional 16 watts) of talking power with pilot-selectable 25 kHz or 8.33 kHz channel spacing.
FIND A FREQUENCY
A work-saving lookup function lets you enter any navaid or airport identifier and have the GTN Xi navigator look up the frequencies for that location (tower, ground, ATIS, clearance delivery, etc.). You can then tap to send the frequency to any radio slot.
SPACE-SAVING AUDIO
To streamline your avionics stack, GTN 750Xi can double as the control panel for your audio system when it’s paired with one of our GMA™ 35 remote audio units (sold separately).
INSTANT RECALL
GTN Xi database technology allows you to quickly recall your most frequently or recently used frequencies. Plus, holding down the volume knob will dial up the emergency frequency.
STATION CONFIRMATION
If you’re given a frequency by ATC, our GTN Xi lookup function will automatically provide the station identifier right below it. So you’ll know you’re making the right call.
ADS-B DATA LINKS
With available Garmin ADS-B “In” equipage solutions, GTN 750Xi can display up to 60 ADS-B traffic targets as well as subscription-free U.S. weather data.
TARGETTREND™ TRACKING
ADS-B based TargetTrend relative motion tracking on the GTN Xi display gives pilots a faster, more intuitive way of judging traffic closure rates and trajectories.
TERMINALTRAFFIC™ DISPLAY
Providing a dynamic display of ADS-B-equipped aircraft and ground vehicles, this technology helps pilots avoid traffic conflicts within the airport environment.
ACTIVE TRAFFIC SOLUTIONS
For more advanced traffic surveillance capability, GTN Xi can integrate with select TAS or TCAS/ACAS systems, including our GTS™ family of ADS-B enhanced products.

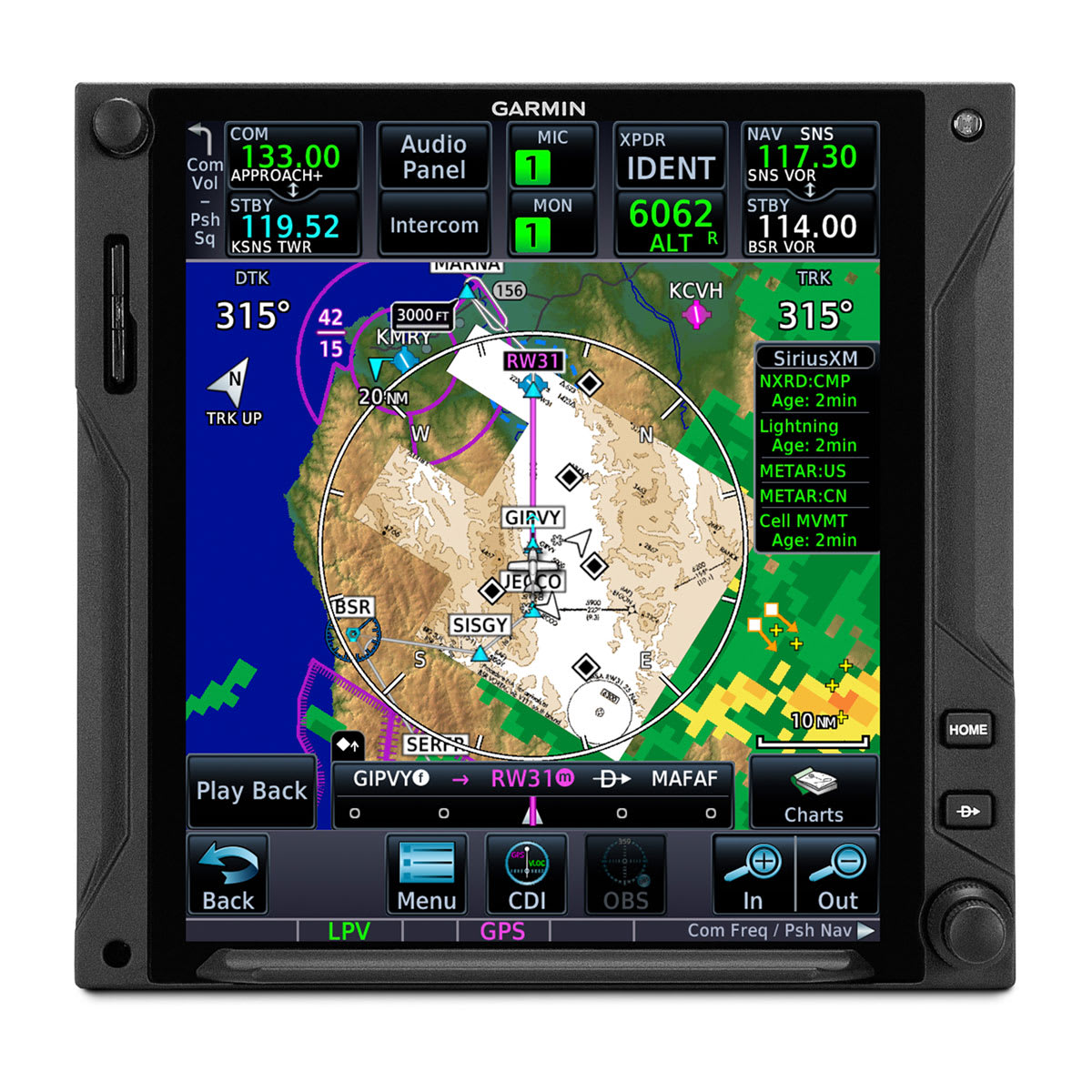

SIRIUSXM® SERVICE
When paired with an optional GDL® 69 datalink receiver, GTN Xi can incorporate SiriusXM satellite weather coverage — plus audio entertainment features4.
WORLDWIDE COMMUNICATIONS
Want global weather, radar imagery and two-way text/voice communications from the air? Connect your GTN 750Xi with our optional GSR 56 satellite link4.
ONBOARD RADAR
To scan your own storm cells, the large-format GTN 750Xi can double as a display for our Doppler-capable GWX™ 75 series digital weather radars — as well as select third-party radar systems6.
CONNECTED COCKPIT
Use optional Connext technology to stream information between GTN Xi and compatible Garmin portables or mobile devices running the Garmin Pilot™ or FltPlan Go apps5.
FLIGHT PLAN TRANSFER
Save time by creating your flight plan on your mobile device at home, then use Connext2 to wirelessly upload the data into your GTN Xi during preflight at the airport.
FLIGHT STREAM
In addition to GPS data, a compatible Connext wireless gateway5 can stream ADS-B traffic, weather and backup attitude data to your mobile device in real time2.
DATABASE SYNC
A Flight Stream 510 Connext gateway5 adds Database Concierge to your GTN Xi navigator. Upload databases from your tablet in minutes — then let automatic sync with your avionics do the rest.
READ THE DIRECTIONS
With FAA Data Comm approval for GTN 750Xi, Garmin brings text-based ATC datalink messaging7 to a much broader range of GA aircraft. Replacing many radio voice calls with automated IFR departure and en route clearances via text link helps enhance efficiency, smooth workflows and prevent miscommunication errors.
A GROWING NETWORK
As part of the FAA’s NextGen ATC modernization program, Data Comm IFR departure clearance operations are available at some 62 of the busiest airports in the U.S. Plus, most all FAA air route traffic control centers are Data Comm-capable for en route link services to aircraft flying above 16,000’.
STREAMLINE WORKLOADS
On applicable aircraft, Data Comm integration5 with GTN 750Xi and, optionally, our TXi™ series flight displays does more than simplify clearance delivery. It also enables frequencies, routes, altitudes and other data to be loaded directly from the transmitted clearance to your avionics — a real work-saver in the cockpit.
HELICOPTER OPTIMIZATION
For demanding helicopter missions, optional GTN 750Xi versions are available with an NVG-compatible display and some 200,000 more low-altitude obstacles in the database.
POWER LINE DATA
For added protection and visual reference in low-level flight conditions, an expanded GTN Xi helicopter database includes more than 700,000 miles of power lines.
WIREAWARE™ TECHNOLOGY
Using the expanded helicopter database, WireAware helps pilots recognize wire-strike hazards with proximity alerts and power lines displayed on the GTN Xi moving map.
HTAWS ALERTING
Optional HTAWS provides GTN Xi with audible alerting and five-color map shading to highlight nearby terrain, obstacles and wires — with voice callouts on descent below 500’.
RADAR ALTIMETER
When paired with a GRA™ 55 radar altimeter5, GTN Xi can be used to track terrain clearance, displaying precise AGL altitude with HTAWS alerting down to 50’.
ON-SCENE MODE
In scenarios such as electronic news gathering, where it’s necessary to hover in proximity to other helicopters, On-scene mode lets pilots minimize repeat alerts for traffic they’re aware of.
Navigator Type
GTN 650Xi series is optionally available without NAV radio or NAV/COMM radio capability.
GTN 750Xi series is optionally available without NAV/COMM radio capability.
Specifications, Compatibility & Documentation
Review detailed technical specifications, compatible avionics interfaces and available product documentation for the Garmin GTN™ 750Xi - 010-02002-05. This information can help aircraft owners and operators understand the product’s physical requirements, supported equipment and installation considerations.
Specifications and compatibility information are provided for general reference and may change without notice. Final aircraft eligibility, approved configuration, equipment compatibility and installation requirements must be confirmed by Neal Avionics before installation.
