Garmin GTN™ 725Xi - 010-02000-01
The Garmin GTN™ 725Xi is a GPS/MFD with a 6.9" high-resolution touchscreen for navigation and multifunction display information. Its faster processing, touchscreen controls and familiar knobs give pilots a capable interface for managing essential flight information in the panel.
Responsive Map Handling
View and manage map information with faster zooming, panning and map rendering enabled by dual-core processors. Pinch-to-zoom and swipe gestures provide an additional touchscreen method for working with map, traffic and terrain pages.
Flexible Flight Information
Bring moving maps, terrain, traffic, weather, airport diagrams and more to the 6.9” display through supported multiple inputs. The 834 pixels (W) x 986 pixels (H) display provides nearly twice the pixel count of its predecessor.
Smart Glide Assistance
Smart Glide can help reduce workload following an engine power loss by considering estimated glide range, terrain and obstacles to recommend a suitable airport or alternatives. With required compatible equipment, it can create a Direct-to route and engage a compatible Garmin autopilot in IAS mode at best glide speed.
Touchscreen And Knob Control
The GTN™ 725Xi combines an on-screen QWERTY keyboard with traditional concentric knobs for entering frequencies, waypoint identifiers and routings. Its outer knob can cycle through as many as 9 custom-assigned pages, while the inner knob supports functions such as zooming or scrolling on the displayed page. The touchscreen also provides quick access to navigation, radio tuning and multifunction display features.
Panel Integration Options

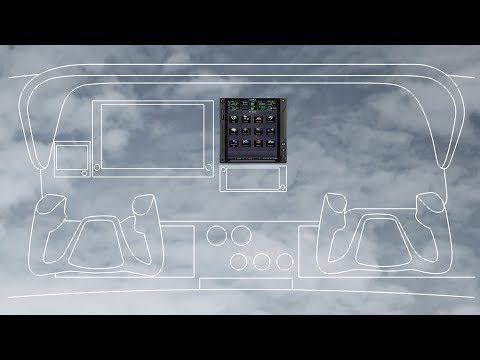

When paired with one of Garmin’s GMA™ 35 remote audio units, sold separately, the GTN 725Xi can serve as the control panel for the audio system to help streamline the avionics stack. Available Telligence™ voice control technology responds to hundreds of spoken commands when activated by a button on the yoke. Smart Glide requires pairing with a compatible flight display and may be activated with an optional dedicated panel button or a long press of the Direct-to button.
Not sure this is the right fit for your aircraft?
Avionics compatibility can vary based on your aircraft, existing equipment, and planned installation. Give Neal Avionics a call or send us an email—we’ll be happy to help you review the product and determine whether it fits your needs.
TAP INTO A NEW GENERATION OF FASTER, SMARTER AVIONICS
With more pixels, more processing power, more speed and performance, our GTN 725Xi system brings exciting new growth capabilities to the industry’s premier GPS/MFD platform.
DO-IT-ALL TOUCHSCREEN

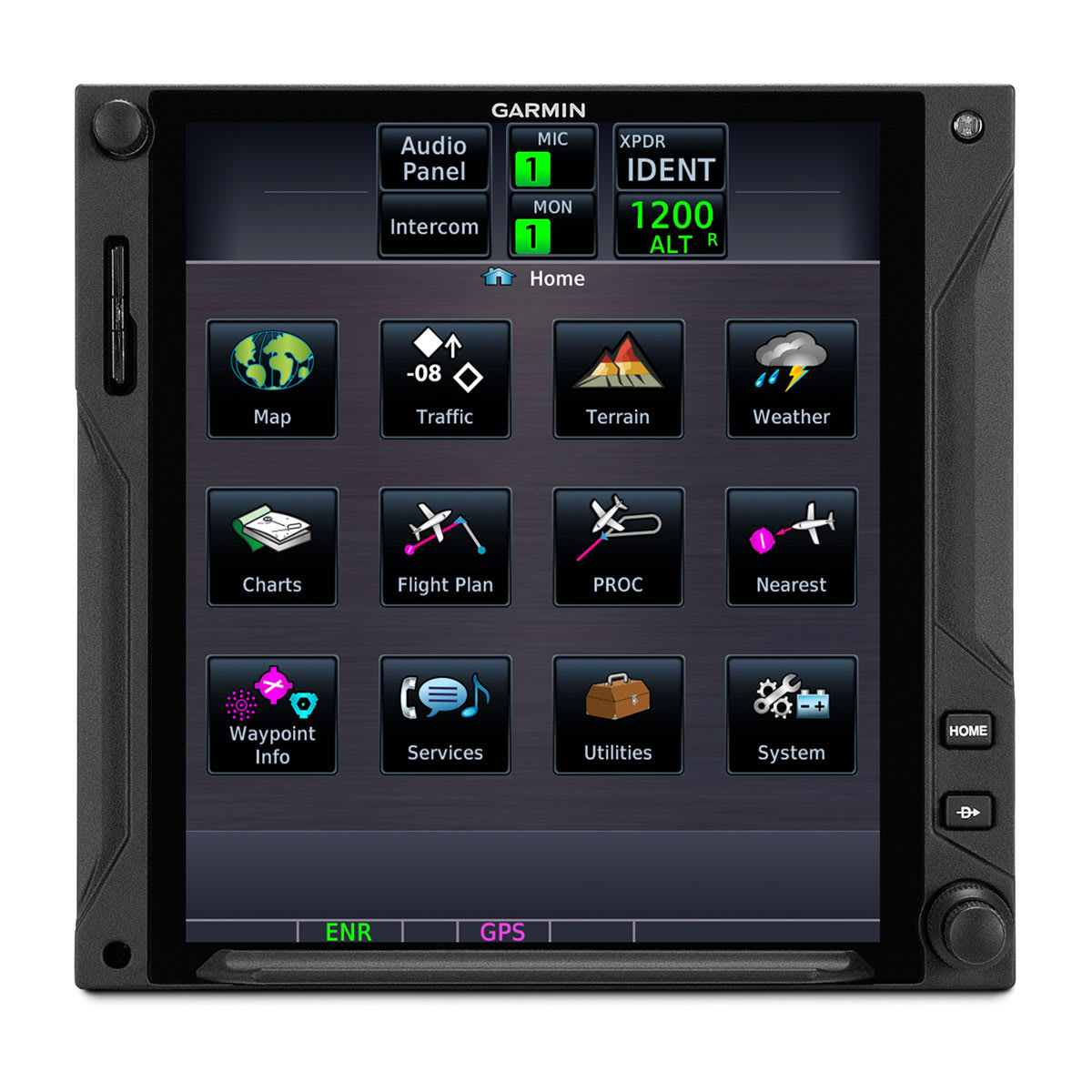

Intuitive touchscreen interface provides quick access to navigation, radio tuning, multifunction display features and more.
LIGHTNING-FAST RESPONSE
Powerful dual-core processors boost the GTN Xi series graphical display capabilities — with faster zooming, panning and map rendering on the display.
HIGH-RESOLUTION DISPLAY
With almost double the pixel count of its predecessor, the GTN Xi series features wider viewing angles and one of the highest-resolution displays ever offered in this class of avionics.
MULTIFUNCTION DISPLAY
Supporting multiple inputs, the 6.9” display can put moving maps, terrain, traffic2, weather2, airport diagrams and more at your fingertips.
EASY DATA ENTRY
Use the on-screen QWERTY keyboard or traditional concentric knobs to enter frequencies, waypoint identifiers, routings and more.
TELL IT, TUNE IT
Available Telligence™ voice control technology helps reduce pilot workload by responding to hundreds of spoken commands with the press of a button on the yoke2.
PINCH, SWIPE GESTURES
A quick finger swipe lets you pan across the map display. Or use a smartphone-like pinch-to-zoom motion to scale up or down on any map, traffic or terrain page.
SPACE-SAVING AUDIO
To streamline your avionics stack, GTN 725Xi can double as the control panel for your audio system when it’s paired with one of our GMA™ 35 remote audio units (sold separately).
QUICK PAGE ACCESS VIA KNOBS
The unit’s dual concentric knob controls now offer quick access to select pages. The outer knob can cycle through as many as 9 custom-assigned pages, with the inner knob supporting functions such as zooming or scrolling on the page displayed.
ENGINE-OUT HELP
In the case of an engine power loss situation, GTN Xi offers Smart Glide technology to help reduce your workload — so you can focus more attention on other tasks during the emergency.
EASY ACTIVATION
Smart Glide requires a compatible flight display to be paired with GTN Xi. The Smart Glide system can be activated with the press of an optional dedicated panel button or by a long press of the Direct-to button.
RECOMMENDS AN AIRPORT
Considering the aircraft’s estimated glide range (including terrain and obstacles), the system recommends a suitable airport for landing and offers a list of alternatives, or it advises if no airport is estimated to be within glide range.
DIRECT-TO ROUTING
If an airport is available, it creates a Direct-to route to the selected airport. And if you’re equipped with a compatible Garmin autopilot, Smart Glide will automatically engage the autopilot in IAS mode at best glide speed — using the GPS guidance to fly the aircraft near the selected airport.
EMERGENCY INFORMATION
Smart Glide technology provides information for the selected airport while providing a shortcut to enter an emergency code in a compatible transponder.
LANDING
Once the aircraft is near the airport, the pilot resumes control and prepares the aircraft for arrival — for example, bleeding off altitude and making the final approach to the selected runway — then lands the aircraft.
SEE THE FULL PICTURE

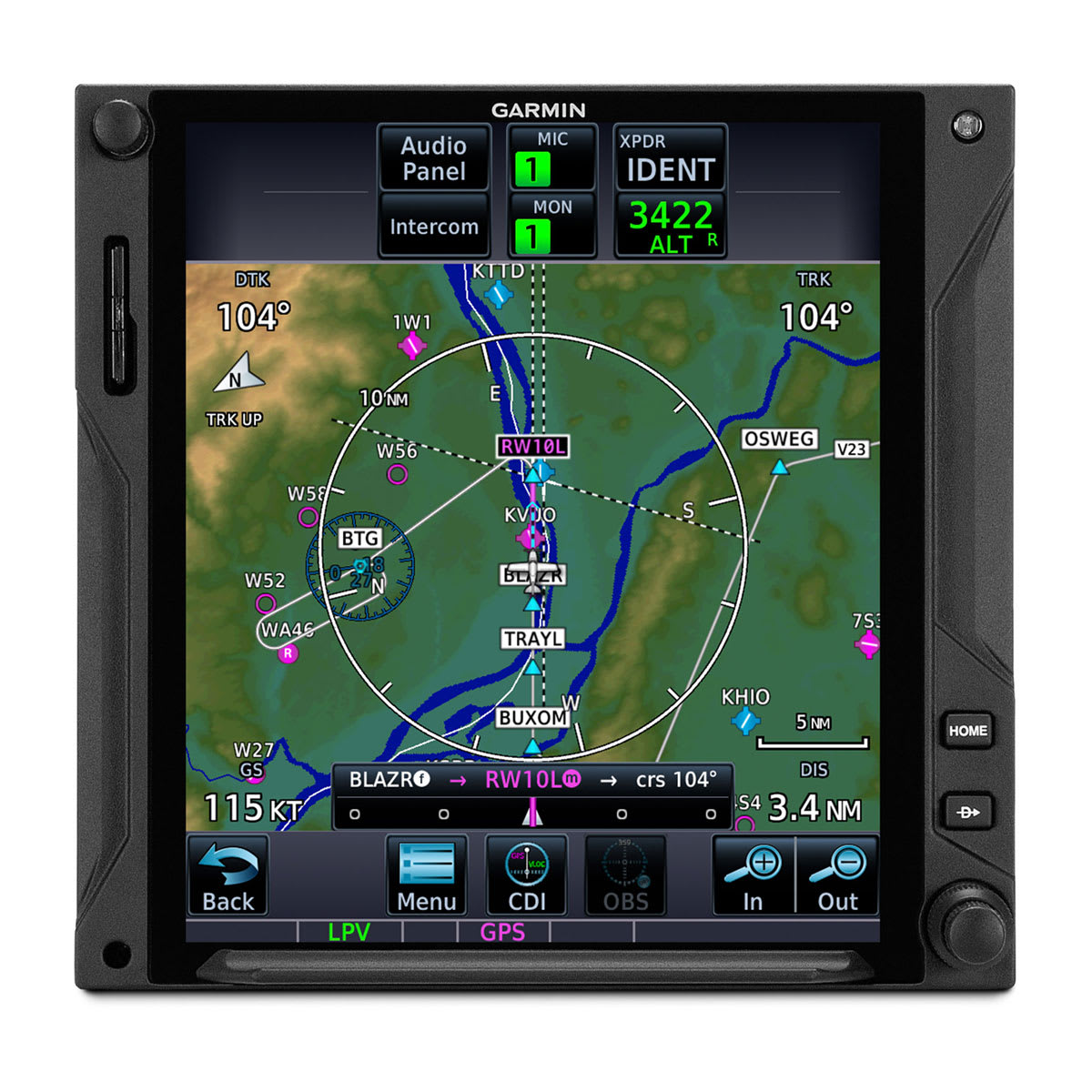

Graphical routing on the display lets you visualize your entire flight plan, including departures, arrivals, visual/instrument approaches, holding procedures and more.
FAST FIND
As soon as you start typing, the GTN Xi FastFind feature uses quick predictive logic to suggest airport and waypoint entries by using current GPS position. Just select and go.
AIRWAYS, YOUR WAY
Victor airways and high-altitude jet routes can be overlaid on the map. For easy IFR routings, view airway segments available from a waypoint and corresponding exit options.
“RUBBER BAND” REROUTES
This handy feature lets you grab a flight plan leg on the screen, and then stretch or move it to adjust for a deviation or ATC amendment to your flight plan.
VIRTUAL MAP TOPOGRAPHY
By referencing built-in terrain, mapping and obstacles databases, GTN 725Xi shows detailed surface features, cities, airports, SUAs and more on the dynamic map display.
TERRAIN ALERTING
A built-in database provides color-coded display overlays to warn when potential terrain conflicts loom ahead. Class A or B TAWS alerting is optionally available.
VIEW CHARTS IN CONTEXT
Our standard FliteCharts® or optional Jeppesen® style ChartView™ plates3 provide georeferenced approaches and terminal procedures.
DIRECT CONNECT
A Direct-to key on the bezel lets you quickly enter a direct course for any selected waypoint. A menu of nearest airports and flight plan waypoints makes for easy entry.
MORE APPROACH OPTIONS
The WAAS/SBAS-certified GPS receiver expands your landing options, enabling GPS-guided LPV glidepath approaches down to ILS-comparable minimums as low as 200’.
CLEARED FOR THE VISUAL
GTN Xi can give advisory visual approach guidance based on a published glidepath or a 3-degree slope from the runway threshold (with terrain/obstacle clearance).
AUTOPILOT INTERFACE
Precise course deviation and roll steering outputs can be coupled to select autopilots, enabling virtually all IFR flight procedures to be flown automatically.
HOLDING PATTERNS
IFR pattern entries can be tricky. GTN 725Xi lets you easily create and execute holding patterns over a published or user-defined waypoint.
SEARCH AND RESCUE
For aerial surveillance, common search pattern types — including orbit, parallel line, expanding square and sector search — can be loaded into your flight plan on the GTN 725Xi navigator2.
SUPPORTS VNAV AND MORE
With our GFC™ 500 and GFC 600, GTN 725Xi supports advanced modes and features such as vertical navigation profiles, radius-to-fix legs, missed approaches and more.
SAFETAXI® DATABASE

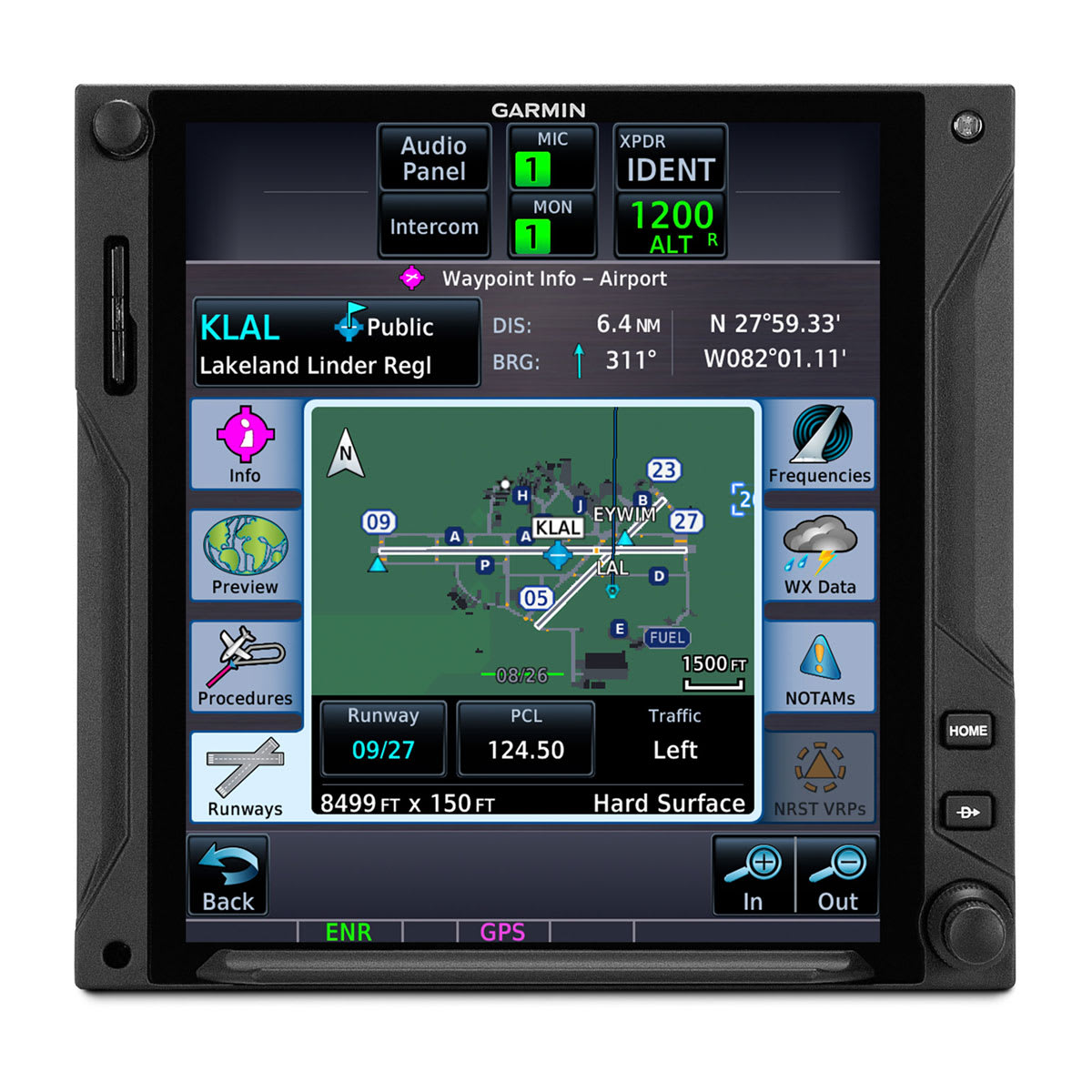

Upon landing, georeferenced SafeTaxi diagrams on the display automatically help track your location on hundreds of airports.
ADS-B DATA LINKS
With available Garmin ADS-B “In” equipage solutions, GTN 725Xi can display up to 60 ADS-B traffic targets as well as subscription-free U.S. weather data.
TARGETTREND™ TRACKING
ADS-B based TargetTrend relative motion tracking on the GTN Xi display gives pilots a faster, more intuitive way of judging traffic closure rates and trajectories.
TERMINALTRAFFIC™ DISPLAY
Providing a dynamic display of ADS-B-equipped aircraft and ground vehicles, this technology helps pilots avoid traffic conflicts within the airport environment.
ACTIVE TRAFFIC SOLUTIONS
For more advanced traffic surveillance capability, GTN Xi can integrate with select TAS or TCAS/ACAS systems, including our GTS™ family of ADS-B enhanced products.
SIRIUSXM® SERVICE

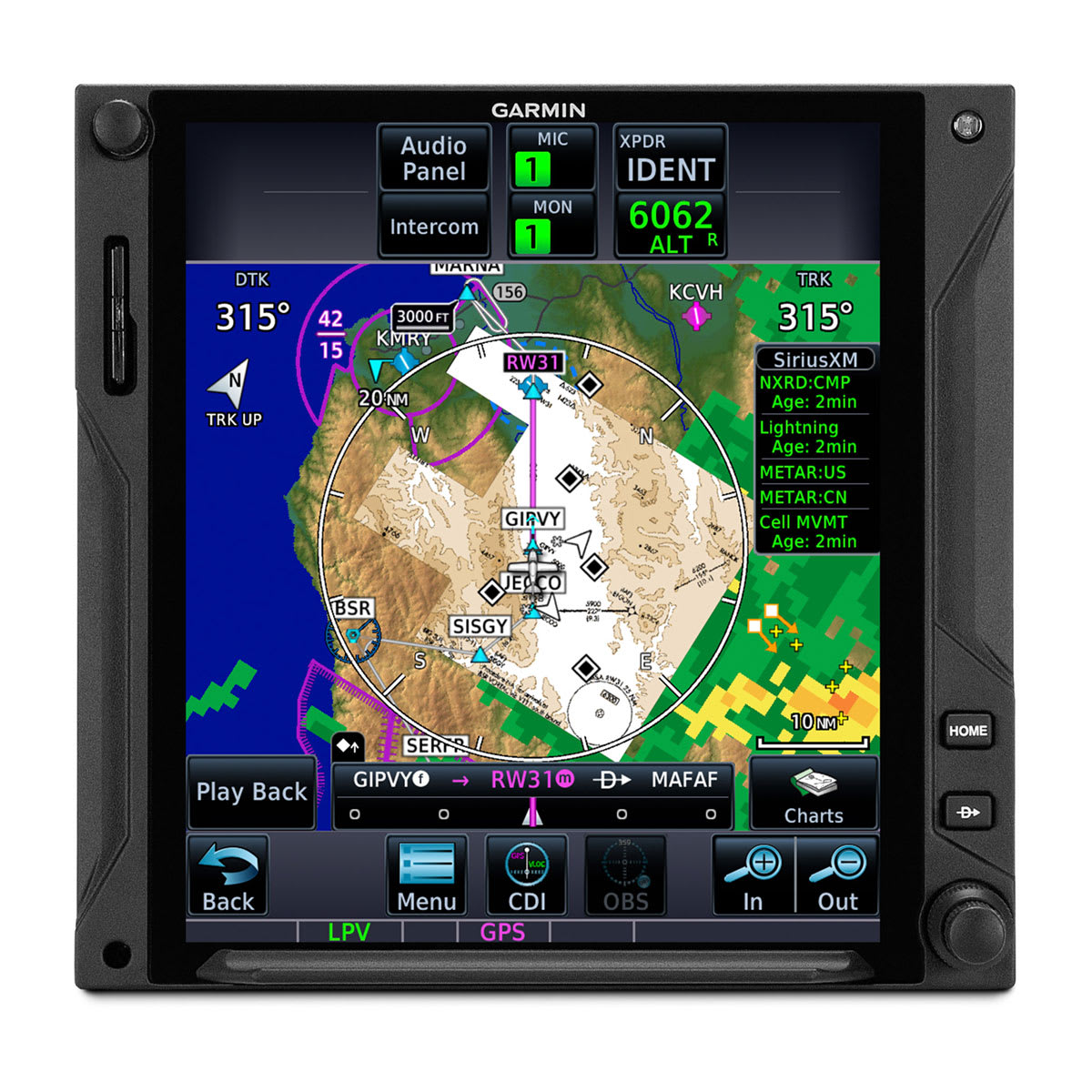

When paired with an optional GDL® 69 datalink receiver, GTN Xi can incorporate SiriusXM satellite weather coverage — plus audio entertainment features4.
WORLDWIDE COMMUNICATIONS
Want global weather, radar imagery and two-way text/voice communications from the air? Connect your GTN 725Xi with our optional GSR 56 satellite link4.
ONBOARD RADAR
To scan your own storm cells, the large-format GTN 725Xi can double as a display for our Doppler-capable GWX™ 75 series digital weather radars — as well as select third-party radar systems6.
CONNECTED COCKPIT
Use optional Connext technology to stream information between GTN Xi and compatible Garmin portables or mobile devices running the Garmin Pilot™ or FltPlan Go apps5.
FLIGHT PLAN TRANSFER
Save time by creating your flight plan on your mobile device at home, then use Connext2 to wirelessly upload the data into your GTN Xi during preflight at the airport.
DATA COMM INTEGRATION
A Flight Stream 510 Connext gateway5 adds Database Concierge to your GTN Xi navigator. Upload databases from your tablet in minutes — then let automatic sync with your avionics do the rest.
FLIGHT STREAM
In addition to GPS data, a compatible Connext wireless gateway5 can stream ADS-B traffic, weather and backup attitude data to your mobile device in real time2.
READ THE DIRECTIONS
With FAA Data Comm approval for GTN 725Xi, Garmin brings text-based ATC datalink messaging7 to a much broader range of GA aircraft. Replacing many radio voice calls with automated IFR departure and en route clearances via text link helps enhance efficiency, smooth workflows and reduce miscommunication errors.
A GROWING NETWORK
As part of the FAA’s NextGen ATC modernization program, Data Comm IFR departure clearance operations are available at some of the busiest airports in the U.S. Plus, most FAA air route traffic control centers are Data Comm-capable for en route link services to aircraft flying above 16,000’.
DATA COMM INTEGRATION
On applicable aircraft, Data Comm integration5 with GTN 725Xi and, optionally, our TXi™ series flight display does more than simplify clearance delivery. It also enables frequencies, routes, altitudes and other data to be loaded directly from the transmitted clearance to your avionics — a real work-saver in the cockpit.
Navigator Type
GTN 650Xi series is optionally available without NAV radio or NAV/COMM radio capability.
GTN 750Xi series is optionally available without NAV/COMM radio capability.
Specifications, Compatibility & Documentation
Review detailed technical specifications, compatible avionics interfaces and available product documentation for the Garmin GTN™ 725Xi - 010-02000-01. This information can help aircraft owners and operators understand the product’s physical requirements, supported equipment and installation considerations.
Specifications and compatibility information are provided for general reference and may change without notice. Final aircraft eligibility, approved configuration, equipment compatibility and installation requirements must be confirmed by Neal Avionics before installation.
