Garmin GTN™ 625Xi - 010-01997-01
The Garmin GTN™ 625Xi is a GPS/MFD that combines touchscreen navigation, flight-plan visualization and multifunction display capability in a 4.9" format. Its higher-resolution display and dual-core processing give pilots a responsive way to view and manage essential flight information.
Faster Map Interaction
View maps with quicker zooming, panning and rendering supported by powerful dual-core processors. The 834 pixels (W) x 370 pixels (H) display provides almost twice the pixel count of its predecessor.
Flexible Flight Plan Control
Visualize the complete flight plan graphically, including departures, arrivals, visual/instrument approaches and holding procedures. Enter waypoint identifiers and routings using either the on-screen QWERTY keyboard or concentric knobs.
Smart Glide Assistance
Smart Glide can recommend a suitable airport based on estimated glide range, terrain and obstacles during an engine power loss situation. When paired with a compatible flight display, it can be activated by an optional dedicated panel button or a long press of the Direct-to button.
Multifunction Display Capability

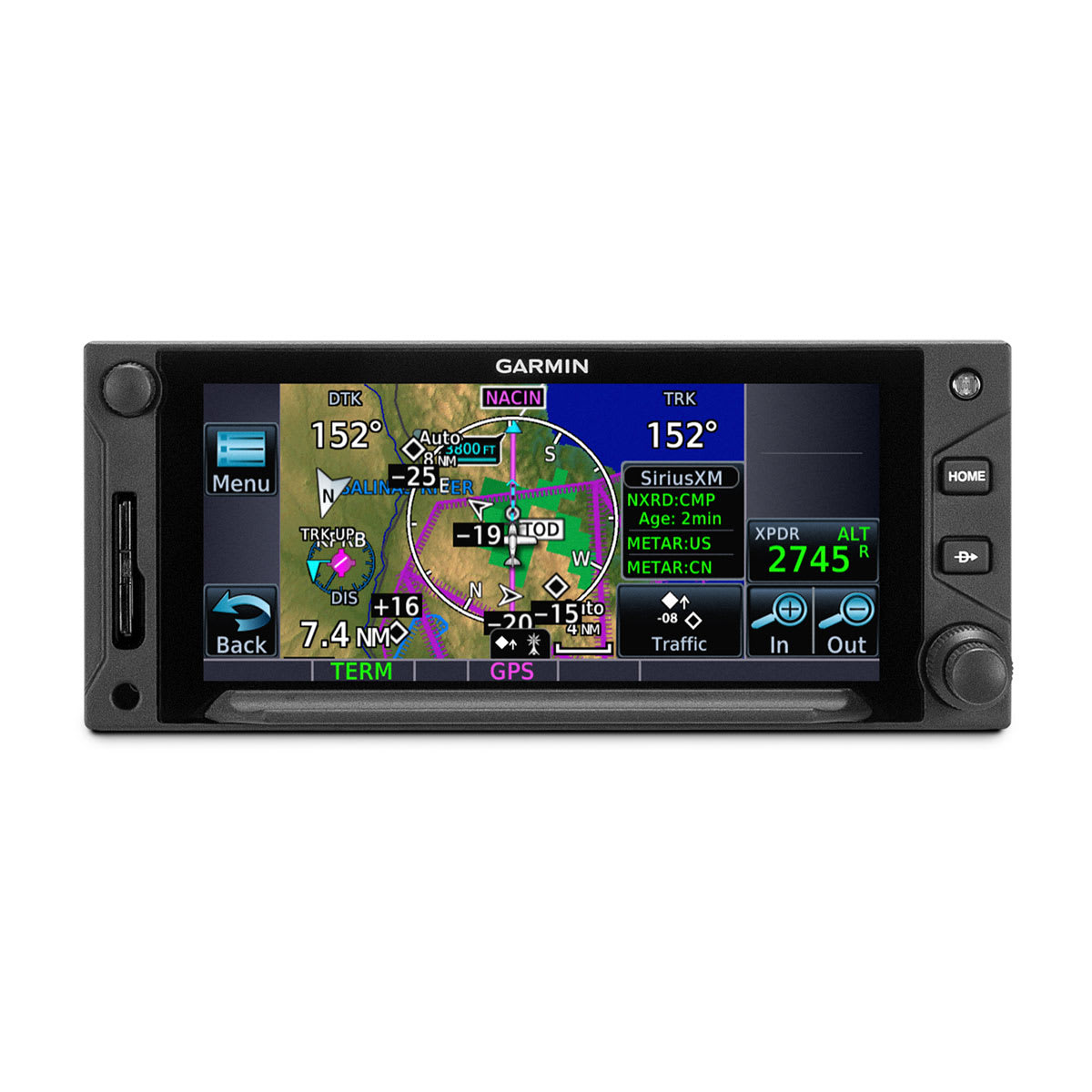

The 4.9" display supports multiple inputs for moving maps, terrain, traffic2, weather2 and airport diagrams. Smartphone-like swipe and pinch gestures allow map panning and scaling on map, traffic or terrain pages. The touchscreen also provides access to navigation, radio tuning and multifunction display features.
Controls For Cockpit Workflow
Dual concentric knobs complement the touchscreen for tactile control. The outer knob can cycle through up to 9 custom-assigned pages, while the inner knob supports functions such as page zooming or scrolling. This combination provides alternate methods for accessing frequently used information and entering data.
Panel Form And Electrical Details
The GTN™ 625Xi has a bezel measuring 2.65" (67 mm) high by 6.25" (159 mm) wide. Unit depth with connectors is 11.25" (286 mm), measured from the face of the aircraft panel to the rear of the connector backshells, and unit weight is 4.1 lbs (1.88 kg). Its input voltage range is 11 VDC - 33 VDC.
Not sure this is the right fit for your aircraft?
Avionics compatibility can vary based on your aircraft, existing equipment, and planned installation. Give Neal Avionics a call or send us an email—we’ll be happy to help you review the product and determine whether it fits your needs.
TAP INTO A NEW GENERATION OF FASTER, SMARTER AVIONICS
With more pixels, more processing power, more speed and performance, our GTN 625Xi system brings exciting new growth capabilities to the industry’s premier GPS/MFD platform.
DO-IT-ALL TOUCHSCREEN

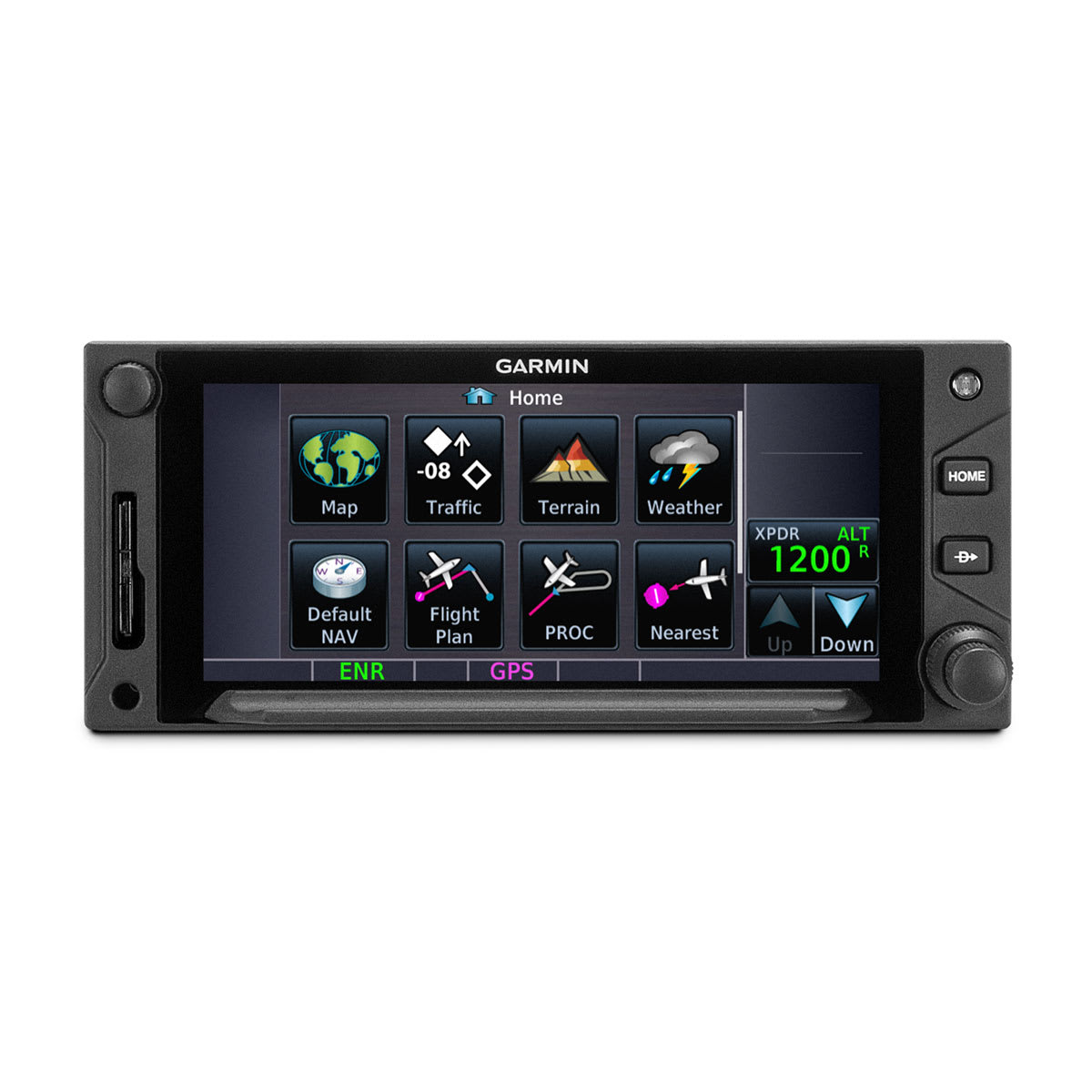

Intuitive touchscreen interface provides quick access to navigation, radio tuning, multifunction display features and more.
LIGHTNING-FAST RESPONSE
Powerful dual-core processors boost the GTN Xi series graphical display capabilities — with faster zooming, panning and map rendering on the display.
HIGH-RESOLUTION DISPLAY
With almost double the pixel count of its predecessor, the GTN Xi series features wider viewing angles and one of the highest-resolution displays ever offered in this class of avionics.
MULTIFUNCTION DISPLAY
Supporting multiple inputs, the 4.9” display can put moving maps, terrain, traffic2, weather2, airport diagrams and more at your fingertips.
TELL IT, TUNE IT
Available Telligence™ voice control technology helps reduce pilot workload by responding to hundreds of spoken commands with the press of a button on the yoke2.
EASY DATA ENTRY
Use the on-screen QWERTY keyboard or traditional concentric knobs to enter frequencies, waypoint identifiers, routings and more.
PINCH, SWIPE GESTURES
A quick finger swipe lets you pan across the map display. Or use a smartphone-like pinch-to-zoom motion to scale up or down on any map, traffic or terrain page.
QUICK PAGE ACCESS VIA KNOBS
The unit’s dual concentric knob controls now offer quick access to select pages. The outer knob can cycle through as many as 9 custom-assigned pages, with the inner knob supporting functions such as zooming or scrolling on the page displayed.
ENGINE-OUT HELP
In the case of an engine power loss situation, GTN Xi offers Smart Glide technology to help reduce your workload — so you can focus more attention on other tasks during the emergency.
EASY ACTIVATION
Smart Glide requires a compatible flight display to be paired with GTN Xi. The Smart Glide system can be activated with the press of an optional dedicated panel button or by a long press of the Direct-to button.
RECOMMENDS AN AIRPORT
Considering the aircraft’s estimated glide range (including terrain and obstacles), the system recommends a suitable airport for landing and offers a list of alternatives, or it advises if no airport is estimated to be within glide range.
DIRECT-TO ROUTING
If an airport is available, it creates a Direct-to route to the selected airport. And if you’re equipped with a compatible Garmin autopilot, Smart Glide will automatically engage the autopilot in IAS mode at best glide speed — using the GPS guidance to fly the aircraft near the selected airport.
EMERGENCY INFORMATION
Smart Glide provides information for the selected airport while providing a shortcut to enter an emergency code in a compatible transponder.
LANDING
Once the aircraft is near the airport, the pilot resumes control and prepares the aircraft for arrival — for example, bleeding off altitude and making the final approach to the selected runway — then lands the aircraft.
SEE THE FULL PICTURE
Graphical routing on the display lets you visualize your entire flight plan, including departures, arrivals, visual/instrument approaches, holding procedures and more.
FAST FIND
As soon as you start typing, the GTN Xi FastFind feature uses quick predictive logic to suggest airport and waypoint entries by using current GPS position. Just select and go.
AIRWAYS, YOUR WAY
Victor airways and high-altitude jet routes can be overlaid on the map. For easy IFR routings, view airway segments available from a waypoint and corresponding exit options.
“RUBBER BAND” REROUTES
This handy feature lets you grab a flight plan leg on the screen, and then stretch or move it to adjust for a deviation or ATC amendment to your flight plan.
VIRTUAL MAP TOPOGRAPHY
By referencing built-in terrain, mapping and obstacles databases, GTN 625Xi shows detailed surface features, cities, airports, SUAs and more on the dynamic map display.
TERRAIN ALERTING
A built-in database provides color-coded display overlays to warn when potential terrain conflicts loom ahead. Class A or B TAWS alerting is optionally available.
DIRECT CONNECT
A Direct-to key on the bezel lets you quickly enter a direct course for any selected waypoint. A menu of nearest airports and flight plan waypoints makes for easy entry.
MORE APPROACH OPTIONS

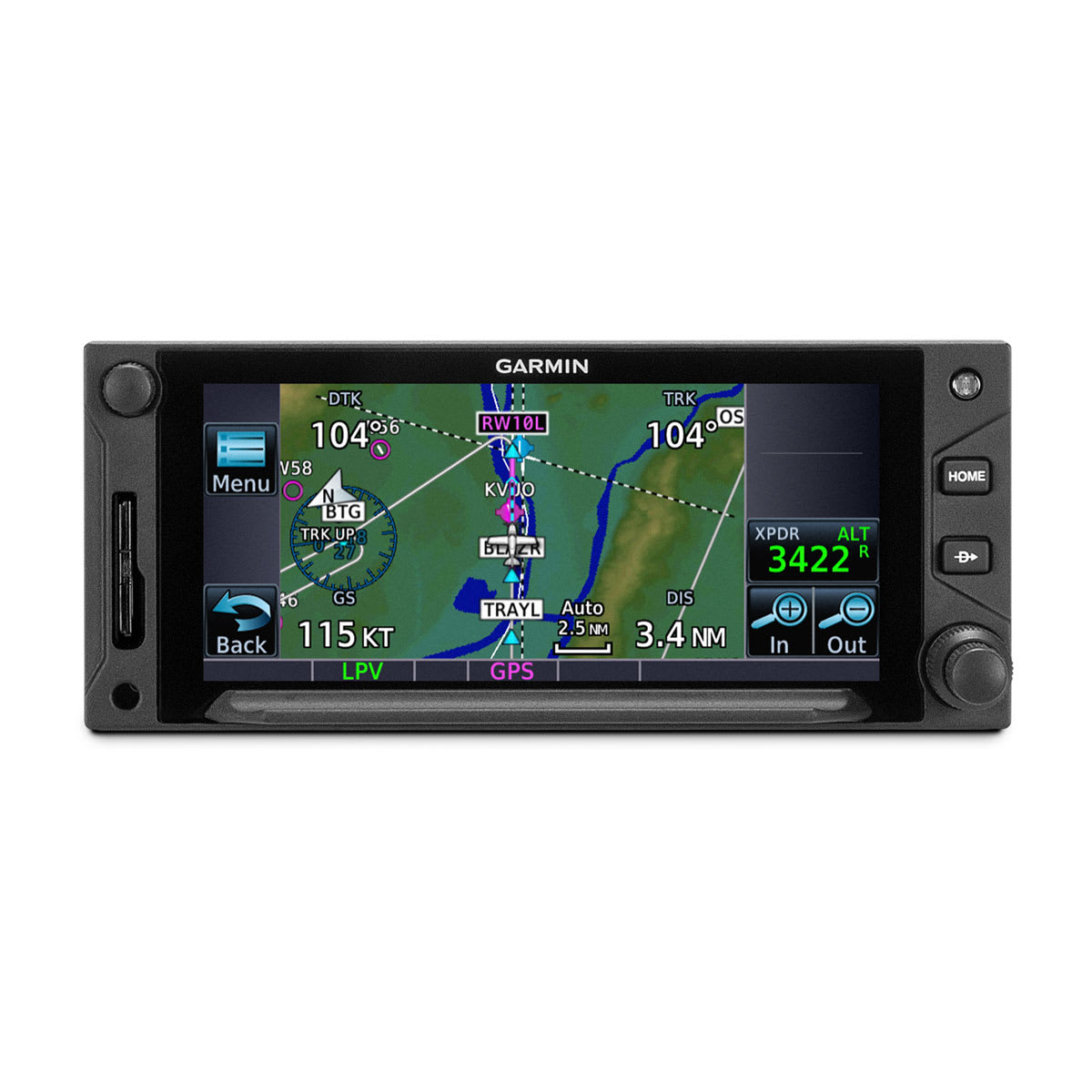

The WAAS/SBAS-certified GPS receiver expands your landing options, enabling GPS-guided LPV glidepath approaches down to ILS-comparable minimums as low as 200’.
CLEARED FOR THE VISUAL
GTN Xi can give advisory visual approach guidance based on a published glidepath or a 3-degree slope from the runway threshold (with terrain/obstacle clearance).
AUTOPILOT INTERFACE
Precise course deviation and roll steering outputs can be coupled to select autopilots, enabling virtually all IFR flight procedures to be flown automatically.
HOLDING PATTERNS
IFR pattern entries can be tricky. GTN 625Xi lets you easily create and execute holding patterns over a published or user-defined waypoint.
SEARCH AND RESCUE
For aerial surveillance, common search pattern types — including orbit, parallel line, expanding square and sector search — can be loaded into your flight plan on the GTN 625Xi navigator2.
SUPPORTS VNAV AND MORE
With our GFC™ 500 and GFC 600, GTN 625Xi supports advanced modes and features such as vertical navigation profiles, radius-to-fix legs, missed approaches and more.
SAFETAXI® DATABASE

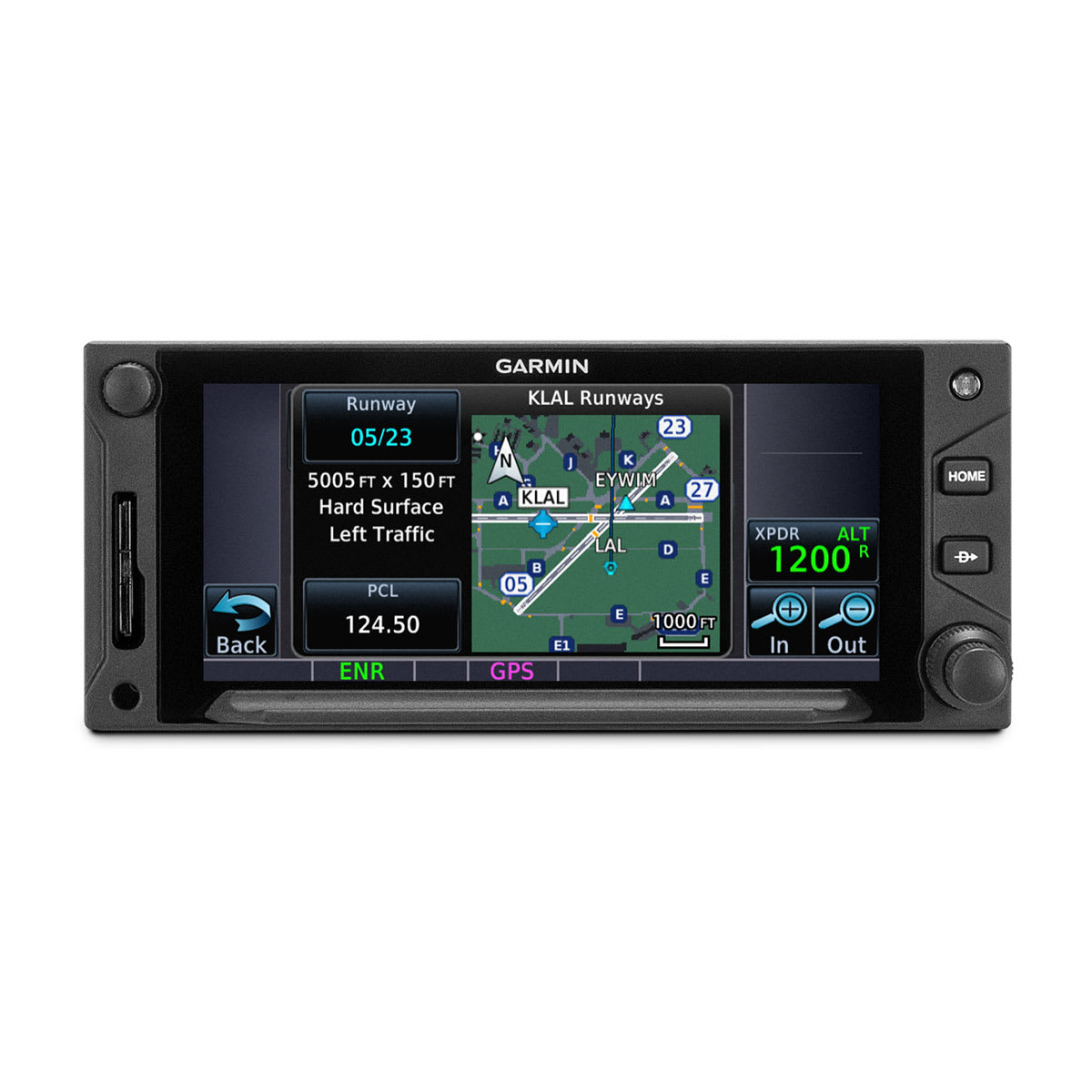

Upon landing, georeferenced SafeTaxi diagrams on the display automatically help track your location on hundreds of airports.
ADS-B DATA LINKS
With available Garmin ADS-B “In” equipage solutions, GTN 625Xi can display up to 60 ADS-B traffic targets as well as subscription-free U.S. weather data.
TARGETTREND™ TRACKING
ADS-B based TargetTrend relative motion tracking on the GTN Xi display gives pilots a faster, more intuitive way of judging traffic closure rates and trajectories.
TERMINALTRAFFIC™ DISPLAY
Providing a dynamic display of ADS-B-equipped aircraft and ground vehicles, this technology helps pilots avoid traffic conflicts within the airport environment.
ACTIVE TRAFFIC SOLUTIONS
For more advanced traffic surveillance capability, GTN Xi can integrate with select TAS or TCAS/ACAS systems, including our GTS™ family of ADS-B enhanced products.
SIRIUSXM® SERVICE
When paired with an optional GDL® 69 datalink receiver, GTN Xi can incorporate SiriusXM satellite weather coverage — plus audio entertainment features4.
WORLDWIDE COMMUNICATIONS
Want global weather, radar imagery and two-way text/voice communications from the air? Connect your GTN 625Xi with our optional GSR 56 satellite link4.
CONNECTED COCKPIT
Use optional Connext technology to stream information between GTN Xi and compatible Garmin portables or mobile devices running the Garmin Pilot™ or FltPlan Go apps5.
FLIGHT PLAN TRANSFER
Save time by creating your flight plan on your mobile device at home, then use Connext2 to wirelessly upload the data into your GTN Xi during preflight at the airport.
FLIGHT STREAM
In addition to GPS data, a compatible Connext wireless gateway5 can stream ADS-B traffic, weather and backup attitude data to your mobile device in real time2.
DATABASE SYNC
A Flight Stream 510 Connext gateway5 adds Database Concierge to your GTN Xi navigator. Upload databases from your tablet in minutes — then let automatic sync with your avionics do the rest.
Navigator Type
GTN 650Xi series is optionally available without NAV radio or NAV/COMM radio capability.
GTN 750Xi series is optionally available without NAV/COMM radio capability.
Specifications, Compatibility & Documentation
Review detailed technical specifications, compatible avionics interfaces and available product documentation for the Garmin GTN™ 625Xi - 010-01997-01. This information can help aircraft owners and operators understand the product’s physical requirements, supported equipment and installation considerations.
Specifications and compatibility information are provided for general reference and may change without notice. Final aircraft eligibility, approved configuration, equipment compatibility and installation requirements must be confirmed by Neal Avionics before installation.
