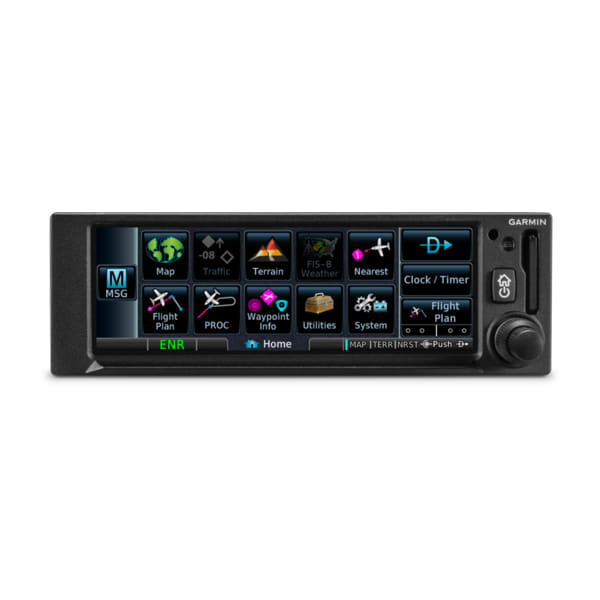

Garmin GPS 175 - 010-01822-50
Garmin GPS 175 is a GPS navigator that brings WAAS/SBAS navigation, flight planning, mapping and approach capability to Part 23 Class I/II aircraft weighing less than 6,000 lbs and experimental/amateur-built aircraft. Its 4.8-inch touchscreen and 2-inch-height form factor make it a compelling option for updating GPS navigation while potentially retaining composite legacy CDIs.

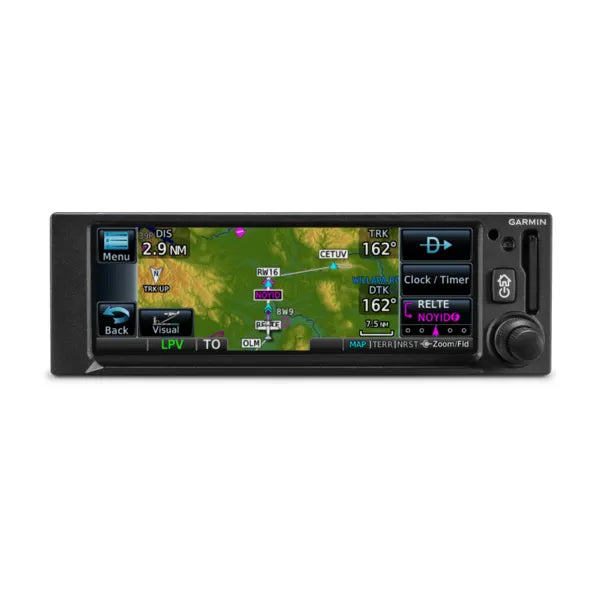

LPV Approach Capability
Fly GPS-guided LPV glidepath approaches to ILS-comparable minimums as low as 200’. The WAAS/SBAS-certified receiver also provides advisory visual approach guidance from a published glidepath or a 3-degree slope from the runway threshold with terrain/obstacle clearance.
Flexible Flight Plan Editing
Make in-flight route adjustments directly on the display with “rubber band” flight plan editing for deviations or ATC amendments. Victor airways can be overlaid on the map, with available segments and exit options shown from a waypoint.

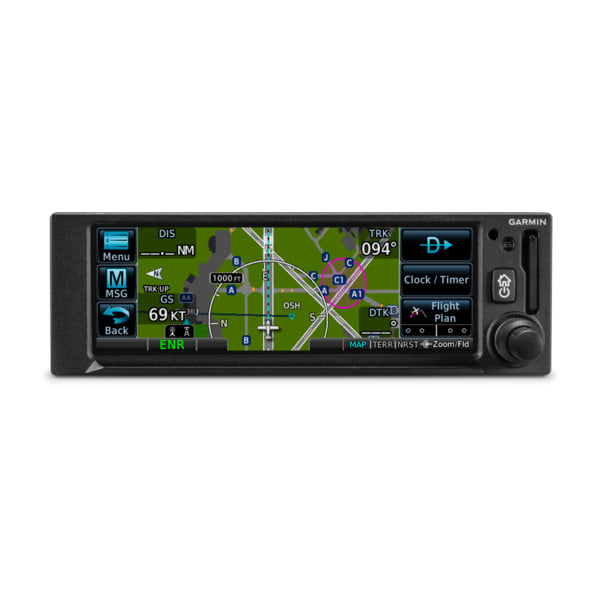

Terrain-Aware Moving Map
Maintain useful geographic context with dynamic mapping that depicts terrain, obstacles, cities, airports and SUAs. Color-coded terrain overlays provide warning of potential terrain conflicts ahead.
Touchscreen And Knob Control
The 4.8-inch, 732 pixels (W) x 240 pixels (H) display combines touchscreen operation with traditional concentric knobs for waypoint identifiers, routings and other entries. Pinch-to-zoom and swipe gestures support map, traffic and terrain viewing, while FastFind predicts airport and waypoint entries using current GPS position. A Direct-to key available on almost every page provides quick access to a selected waypoint, nearest airport or flight plan waypoint.
Cockpit Installation Considerations
GPS 175 has a 2.02" (51.0 mm) bezel height, matching the 2-inch height of older navigation equipment. This arrangement can allow retention of composite legacy CDIs already installed in the aircraft, which may help minimize installation cost. The unit measures 6.25" (159.0 mm) wide and 6.58" (167 mm) deep with connectors, and weighs 1.3 lbs (0.6 kg).
Autopilot And Display Functions
Precise course deviation and roll-steering outputs can be coupled to Garmin autopilots and select third-party autopilots, enabling virtually all IFR flight procedures to be flown automatically. The multifunction display also supports moving maps, SafeTaxi® airport diagrams, terrain, traffic and weather when properly equipped. Traffic functionality requires a compatible ADS-B “In” source, sold separately.
Not sure this is the right fit for your aircraft?
Avionics compatibility can vary based on your aircraft, existing equipment, and planned installation. Give Neal Avionics a call or send us an email—we’ll be happy to help you review the product and determine whether it fits your needs.
SMART CAPABILITIES IN AN EASY-TO-INSTALL PACKAGE
Get the advanced GPS navigation functions you’ve always dreamed of, including easy flight planning, LPV and visual approaches, traffic1 and terrain, and more.
SLIM GPS NAVIGATION
Created for Part 23 Class I/II aircraft (weighing less than 6,000 lbs) and experimental/amateur-built aircraft, GPS 175 provides a smart, affordable way to add next-generation navigation to your favorite airplane.
DO-IT-ALL TOUCHSCREEN
The intuitive touchscreen interface provides quick access to navigation, multifunction display features and more.
SIMPLE INSTALLATION
The GPS 175 navigator has the same 2-inch height as older navigation equipment and can allow you to keep the composite legacy CDIs already in your aircraft to minimize installation cost.
MULTIFUNCTION DISPLAY
The 4.8-inch display puts moving maps, terrain, traffic and weather 1, SafeTaxi® airport diagrams and more at your fingertips.
EASY DATA ENTRY
Use the on-screen keyboard or traditional concentric knobs to enter waypoint identifiers, routings and more.
PINCH, SWIPE GESTURES
A quick finger swipe lets you pan across the map display. Or use a smartphone-like pinch-to-zoom motion to scale up or down on any map, traffic1 or terrain page.
FASTFIND FEATURE
As you begin typing, the GPS 175 navigator’s FastFind feature uses predictive logic and your current GPS position to suggest airport and waypoint entries. Simply select an entry and go.
AIRWAYS, YOUR WAY
Victor airways can be overlaid on the map. For easy IFR routings, view airway segments available from a waypoint and corresponding exit options.
“RUBBER BAND” REROUTES
This handy feature lets you grab a flight plan leg on the screen and then stretch or move it to adjust for a deviation or ATC amendment to your flight plan.
VIRTUAL MAP TOPOGRAPHY
By referencing built-in terrain, mapping and obstacles databases, GPS 175 shows detailed surface features, cities, airports, SUAs and more on the dynamic map display.

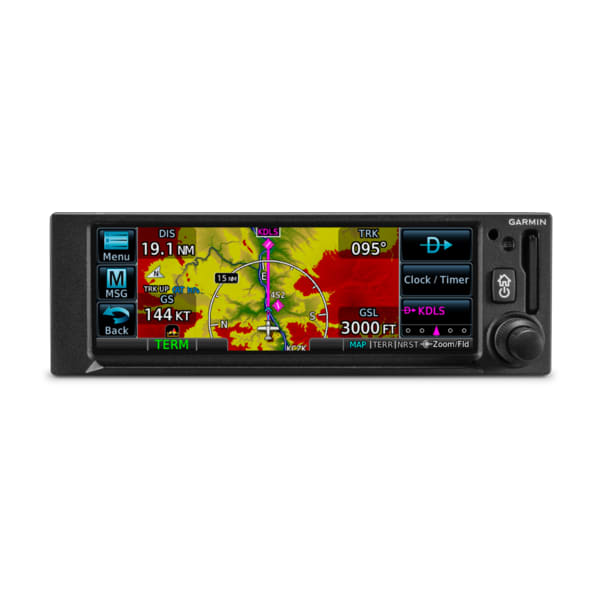

TERRAIN ALERTING
A built-in database provides color-coded display overlays to warn of potential terrain conflicts ahead.
DIRECT CONNECT
A Direct-to key on nearly every page lets you quickly enter a direct course to any selected waypoint. A menu of nearest airports and flight plan waypoints supports easy entry.
MORE APPROACH OPTIONS
The WAAS/SBAS-certified GPS receiver enables GPS-guided LPV glidepath approaches down to ILS-comparable minimums as low as 200’.
CLEARED FOR THE VISUAL
GPS 175 can give advisory visual approach guidance based on a published glidepath or a 3-degree slope from the runway threshold (with terrain/obstacle clearance).
AUTOPILOT INTERFACE
Precise course deviation and roll steering outputs can be coupled to Garmin autopilots and select third-party autopilots, enabling virtually all IFR flight procedures to be flown automatically.
HOLDING PATTERNS
IFR pattern entries can be tricky. The GPS 175 navigator lets you easily create and execute holding patterns over a published or user-defined waypoint.

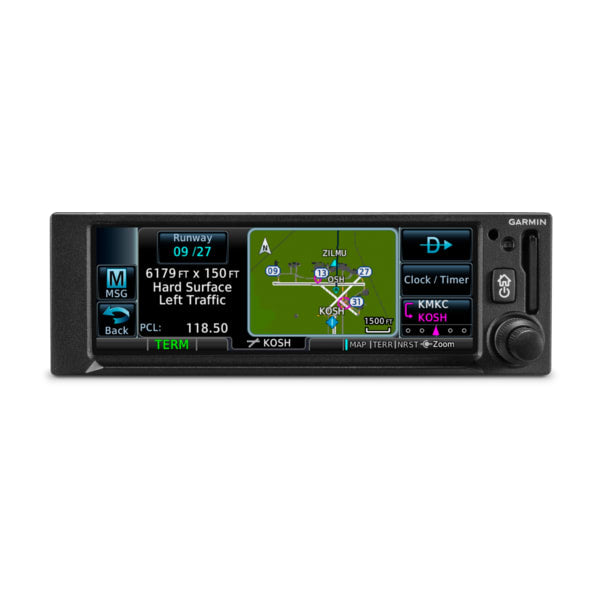

SAFETAXI DATABASE
Upon landing, georeferenced SafeTaxi diagrams on the display automatically help you track your location on hundreds of airports.
ADS-B DATA LINKS
When paired with a Garmin ADS-B “In” equipage solution2, GPS 175 can display up to 60 ADS-B traffic targets as well as subscription-free U.S. weather data.
PANEL INTEGRATION
The GPS 175 navigator interfaces with Garmin flight displays, including AXIS™, G3X Touch™ (experimental and certified), G5 (experimental and certified), G500/G600, G500 TXi/G600 TXi and select third-party displays3 to provide navigation outputs.
CONNECT YOUR COCKPIT
Use built-in Connext technology to stream information between GPS 175 and your compatible Garmin portables or mobile devices running the Garmin Pilot or ForeFlight apps2. You can stream GPS data and back up attitude data to your device in real time.
FLIGHT PLAN TRANSFER
Save time by creating your flight plan on your mobile device at home, then use built-in Connext technology to wirelessly upload the data into your GPS 175 during preflight at the airport.
EASY DATABASE UPDATES
Install a Flight Stream 510 gateway to add Database Concierge to your GPS 175 navigator. Upload databases from your tablet in minutes — then let automatic sync with your compatible avionics do the rest.
TRAINER APP
A free iPad® Trainer app is available on the App Store®. Familiarize yourself with the product before you buy.
Features
GNC 355A offers optional 8.33 kHZ channel spacing
Specifications, Compatibility & Documentation
Review detailed technical specifications, compatible avionics interfaces and available product documentation for the Garmin GPS 175 - 010-01822-50. This information can help aircraft owners and operators understand the product’s physical requirements, supported equipment and installation considerations.
Specifications and compatibility information are provided for general reference and may change without notice. Final aircraft eligibility, approved configuration, equipment compatibility and installation requirements must be confirmed by Neal Avionics before installation.
