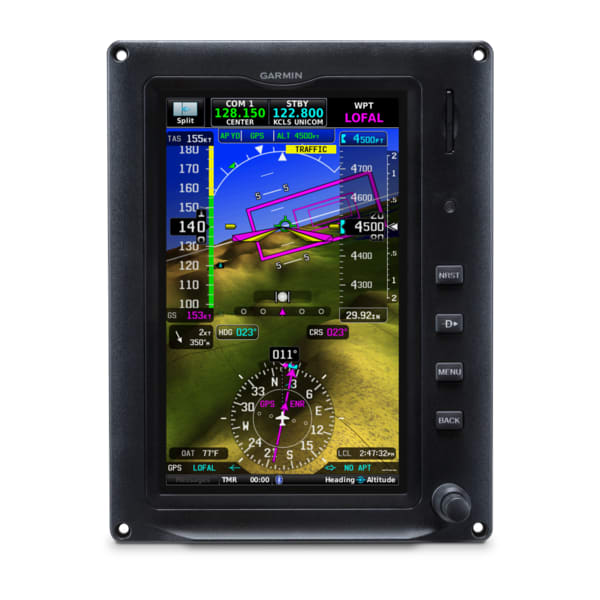

Garmin G3X Touch™ for Certificated Aircraft — 7" Portrait PFD Display - G3X-TCERT-00
The Garmin G3X Touch™ for Certificated Aircraft, 7" Portrait PFD Display brings a modern touchscreen flight display to single-engine piston aircraft. It provides primary flight information in a compact portrait-format display while supporting flexible PFD/MFD presentation options for a more integrated instrument panel.
Clear Primary Flight Data
Keep essential flight information in view with attitude, airspeed, altitude, heading, vertical speed and more. Its HSI accepts VOR/LOC and/or GPS course guidance, including lateral and vertical course deviation, when used with a compatible navigator.
Touchscreen And Knob Control
Access display functions by touchscreen, including while wearing gloves, or use the concentric knobs. Dedicated bezel buttons provide quick Direct-to entry and access to nearest airports or waypoints.
Flexible Panel Growth
Configure a single 7" display for PFD and MFD functionality or for MFD and EIS windows¹. The system can be expanded with up to three 10.6 inch or 7 inch portrait-format displays¹ as panel needs change.
Situational Awareness Tools
SVX synthetic vision technology adds 3D depictions of terrain, obstacles and airports to support situational awareness throughout flight. Highway in the Sky pathway boxes help visualize en route legs, flight track and course intercepts. The built-in terrain, mapping and obstacle databases also support dynamic map detail and color-coded terrain and obstacle displays with visual and audible terrain-conflict alerts.
Interactive Map Workflow
The moving map supports touch panning and pinch-to-zoom for reviewing route information and surrounding detail. Touching a location on the map displays its distance, bearing and time from the aircraft, along with elevation and GPS coordinates. A full-screen PFD can also be changed to a split PFD/MFD view by touch to place additional information in the pilot’s field of view.
Digital Flight Reference
The GSU 25D ADAHRS supplies aircraft attitude, heading, path vector and air-data reference in substantially less space and weight than gyro-based instrument systems. When paired with a GTN™ Xi series navigator, G3X Touch supports Smart Glide engine-out navigation functionality, which recommends a nearby airport and creates a Direct-to route after activation.
Not sure this is the right fit for your aircraft?
Avionics compatibility can vary based on your aircraft, existing equipment, and planned installation. Give Neal Avionics a call or send us an email—we’ll be happy to help you review the product and determine whether it fits your needs.
EXCEPTIONAL FLIGHT DISPLAYS FOR YOUR PISTON SINGLE
Upgrade from legacy mechanical instruments to a modern touchscreen glass cockpit with solutions for PFD, MFD and optional engine indication system (EIS) capabilities.
EASY-TO-READ SCREENS
These bright, high-resolution, large-format LCD displays are easy to read and easy to use — so you have a whole new perspective on situational awareness.
DISPLAY OPTIONS
The 10.6 inch display can be set up for either PFD, MFD or PFD/MFD functionality with an EIS strip. A single 7 inch display can accommodate either PFD and MFD functionality or MFD and EIS windows1.
INSTALLATION OPTIONS
Pair up to three of the 10.6 inch or 7 inch portrait format displays1 — or install one now, and scale up your panel as your needs change.
TOUCH AND KNOB CONTROL
Access display functions with easy touchscreen inputs — even while wearing gloves — or use the concentric knobs if that’s more your style.
FLY DIRECT
Dedicated buttons on each display’s bezel allow you to quickly enter a direct course to an airport — or select from a menu of nearest airports or waypoints.
DIGITAL ADAHRS
GSU 25D ADAHRS provides highly accurate and reliable referencing of your aircraft attitude, heading, path vector and air data at a fraction of the space and weight of gyro-based instrument systems.
PRIMARY FLIGHT DATA
See attitude, airspeed, altitude, heading, vertical speed and more. Plus navigate with an HSI that accepts VOR/LOC and/or GPS course guidance, including both vertical and lateral course deviation, with your compatible navigator.
SYNTHETIC VISION TECHNOLOGY
Our SVX synthetic vision technology enhances situational awareness in all phases of flight by including 3D depictions of terrain, obstacles and airports.
HIGHWAY IN THE SKY
Easily visualize your flight path, including en route legs, flight track, course intercepts and more, with our pathway boxes.
VERSATILE DISPLAY
Switch from full-screen PFD to split PFD/MFD with a touch — to put more valuable flight information directly in your field of view.
COMPATIBLE WITH SMART GLIDE™ TECHNOLOGY
When paired with the GTN™ Xi series navigator, G3X Touch supports Smart Glide engine-out navigation functionality. Once activated, Smart Glide recommends a nearby airport and creates a Direct-to route so you can land.
DYNAMIC TOPOGRAPHY
By referencing built-in terrain, mapping and obstacle databases, G3X Touch shows detailed surface features, cities, airports, SUAs and more on the dynamic map display.
SIMPLE PAN AND ZOOM
Get all of your route information at your fingertips. Easily pan across the moving map by dragging your finger across the screen, or pinch to zoom to see more detail.
INTERACTIVE MAP
Touch anywhere on the map, and, using your current position, the display shows the distance, bearing and time to that location on the map — as well as its elevation and GPS coordinates.
TERRAIN ALERTING
A built-in database depicts terrain and obstacles with color-coded 2D or profile displays — or both — while visual and audible alerts indicate when potential terrain conflicts loom ahead.
SAFETAXI® DATABASE
Upon touchdown, our built-in SafeTaxi diagrams help you navigate airport environments safely, with your aircraft position overlaid onto taxiways, runways, ramps and more.
CHARTS IN CONTEXT
Our standard FliteCharts® procedure charts or optional Jeppesen® style ChartView™ plates — available with a subscription — provide georeferenced approaches and terminal procedures.
ADS-B “IN” AND “OUT”
G3X Touch can display ADS-B “In” weather and traffic information when connected with a GNX™ 375 navigator, GTX™ 345 transponder or GDL® 50R or GDL 52R receiver (each sold separately).
MONITOR TRAFFIC TARGETS
Pair G3X Touch with a compatible transponder (sold separately), and enjoy our proprietary TargetTrend™ and TerminalTraffic™ technologies to more intuitively monitor ADS-B traffic targets in the air and on the ground.
SIRIUSXM® WEATHER AND RADIO
Install a GDL 51R or GDL 52R SiriusXM receiver to display SiriusXM satellite weather coverage — as well as listen to audio entertainment3.
EIS INDICATIONS
Display primary engine indications with the addition of a GEA™ 24 module and appropriate sensors to show various engine, fuel and electrical gauges with easy-to-interpret color bands.
SUPPORT FOR POPULAR ENGINES
Engine sensor kits are available for most popular Lycoming or Continental 4- to 6-cylinder engines.
LEAN ASSIST MODE
Optimize fuel economy while maintaining high efficiency and performance of your engine with lean assist mode (when using optional GEA 24).
ENGINE DATA LOGGING
Download engine data to an SD™ card in the display, or wirelessly share to the Garmin Pilot™ app on your compatible smart device, and later upload it to the flyGarmin.com® website for analysis by your maintenance shop’s service team.
COMM RADIOS
Add up to two COMM radios (such as the panel-mounted GTR 225, GNC® 255, GNC 355 or GTN™ Xi series), and easily control active and standby COMM frequencies from the G3X Touch display.
AUDIO PANEL
Control the advanced audio functions of the remote mount GMA™ 245R audio panel (PMA) right from your G3X Touch display.
TRANSPONDER CONTROL
Easily enter squawk codes via your G3X Touch display to control a transponder, such as our GNX 375 or GTX 345.
ADVANCED AUTOPILOT
Pair G3X Touch with the affordable GFC 500 autopilot4 for safety-enhancing features, such as overspeed and underspeed protection, a dedicated LVL button and Garmin ESP™ (Electronic Stability and Protection) corrective technology.
IFR APPROACH CAPABILITY
Add LPV/LNAV/ILS approach capabilities when you pair G3X Touch with select Garmin navigators (each sold separately), such as GTN 650Xi, GTN 750Xi, GNX 375, GNC 355 or GPS 175.
BACKUP ATTITUDE INSTRUMENT
Our optional GI 275 and G5 electronic flight instrument4 automatically syncs baro and bug settings. The G5 can drive your GFC 500 autopilot in the unlikely event of a display failure.
RELIABLE REVERSIONARY
In the unlikely event of a display failure, reversionary mode enables the remaining flight displays, in multiple display installations, to present all essential flight information — including EIS data when installed.
COMPATIBLE WITH CONNEXT TECHNOLOGY
Built-in Connext wireless connectivity makes true cockpit companions of your compatible mobile devices running the Garmin Pilot, FltPlan Go and ForeFlight Mobile apps — as well as aera® 660 and aera 760 aviation portables.
CREATE FLIGHT PLANS
Use your compatible mobile device or portable to create a flight plan in the comfort of your home, office or pilot lounge, and then transfer it to your G3X Touch with a tap or two — waypoints, airways, departures, arrivals and all.
UPDATE EN ROUTE
Adding last minute or en route flight plan amendments from ATC — or due to weather — is easy. Simply make them on your compatible mobile device or Garmin portable, and sync again to conveniently and efficiently manage your cockpit.
FLIGHT DATA STREAMING
Wirelessly stream GPS, attitude information and ADS-B traffic and weather data to your compatible portable or mobile device.
Optional EIS
The optional engine information system is compatible with most popular Lycoming or Continental 4- to 6-cylinder engines.
Specifications, Compatibility & Documentation
Review detailed technical specifications, compatible avionics interfaces and available product documentation for the Garmin G3X Touch™ for Certificated Aircraft — 7" Portrait PFD Display - G3X-TCERT-00. This information can help aircraft owners and operators understand the product’s physical requirements, supported equipment and installation considerations.
Specifications and compatibility information are provided for general reference and may change without notice. Final aircraft eligibility, approved configuration, equipment compatibility and installation requirements must be confirmed by Neal Avionics before installation.
