Garmin AXIS™ GDU 116NC — 11.6" Integrated Flight Display combines primary flight, multifunction and available engine indication capability with an internal IFR-certified GPS, integrated VHF NAV receiver, 10-watt VHF COMM radio and internal audio-panel capability. Designed for eligible certified aircraft, part number 010-03002-00 provides a full-HD glass-cockpit interface that can centralize flight, GPS navigation, VOR and localizer navigation, radio communication and cockpit-audio functions.
Integrated IFR GPS And VHF NAV
The GDU 116NC includes an internal GPS receiver and VHF NAV receiver certified for IFR navigation. It supports GPS-based navigation together with compatible VOR, localizer and glideslope operations, giving the panel access to both satellite and conventional ground-based navigation sources.
10-Watt COMM And Audio Capability
An integrated 10-watt VHF COMM radio supports active and standby frequency display, standby-frequency tuning, frequency swap, volume, squelch and monitoring through the AXIS interface. The display also supports an internal audio-panel configuration with a four-place intercom, dual-COMM switching and COMM playback.
Full-HD Touch And Knob Control
View critical flight and system information on an 11.6" landscape display with 1920 × 1080 full-HD resolution. Pilots can operate AXIS through the capacitive touchscreen, two dual concentric knobs and six bezel softkeys, providing both direct touch interaction and tactile control.
Primary Flight And Multifunction Display Capability
The GDU 116NC can serve as the center of a configurable Garmin AXIS flight display system. When configured as a primary flight display, it presents attitude, airspeed, altitude, heading, air data, navigation guidance and other critical flight information within the Primary Flight Window. Split-screen arrangements can keep a Multifunction Window visible alongside the PFD, while MFD configurations can display moving maps, flight plans, waypoint data, terrain, obstacles and available traffic or weather overlays. Additional available functions include enhanced synthetic vision, 3D SafeTaxi® airport diagrams, pilot-selectable widgets and customizable data fields.
Integrated IFR GPS, NAV, COMM And Audio
The GDU 116NC is the most fully integrated certified 11.6" AXIS configuration. Its internal IFR GPS supports graphical flight planning and compatible GPS-guided approach operations, while the integrated VHF NAV receiver provides access to conventional VOR, localizer and glideslope navigation. Supported installations can provide automatic GPS-to-localizer switching for ILS operations. The built-in 10-watt VHF COMM radio places active and standby frequency controls directly within the AXIS interface, and the internal audio-panel capability supports a four-place intercom, compatible dual-COMM operation, COMM playback and selected Bluetooth phone or entertainment functions.
Engine Display And Panel Integration
When paired with the required compatible GEA™ 110 engine adapter, sensors and approved aircraft configuration, AXIS can display engine, electrical, fuel and other aircraft-system information. Garmin specifies that a GEA 110 installation requires at least one GDU 116C or GDU 116NC in the system. The 11.6" display measures approximately 11.00" wide by 7.83" high by 4.28" deep, with approximately 2.48" of installation depth behind the panel face. It also uses the same panel cutout and screw locations as the Garmin 10.6" G3X Touch™ display, creating a practical upgrade path for qualifying installations.
Not sure this is the right fit for your aircraft?
AXIS installations require professional system planning and installation. Aircraft eligibility, IFR GPS and VHF NAV antenna requirements, internal audio-panel configuration, ADAHRS and magnetometer selection, engine monitoring equipment, autopilot compatibility, datalink interfaces, wiring and mounting provisions must be confirmed for the specific aircraft. Contact Neal Avionics before ordering so we can verify part number 010-03002-00 and help configure the correct AXIS system for your panel.

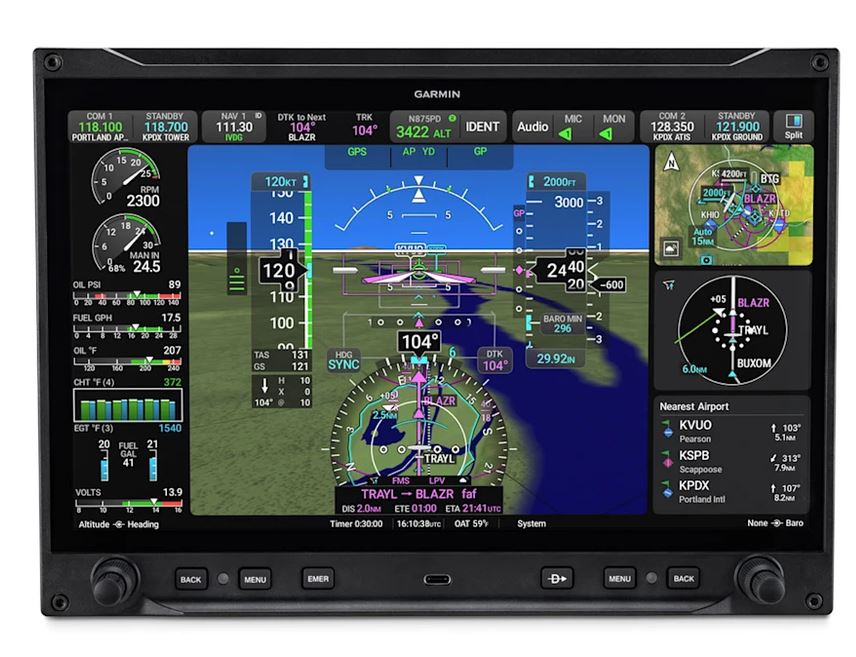

AXIS™ 11.6-inch Integrated Flight Display
Garmin GDU 116NC
GARMIN PART NUMBER 010-03002-00
The most fully integrated certified 11.6-inch AXIS configuration,
combining a full-HD flight display, IFR GPS, VHF NAV receiver,
10-watt VHF COMM radio and internal audio-panel capability with a
four-place intercom.
CertificationCertified / TSO
Internal GPS
IFR
Integrated COMM10-Watt VHF
Integrated NAVVHF NAV Receiver
Audio Capability4-Place Intercom
The Complete AXIS Configuration
Flight Display, IFR GPS,
NAV/COMM and Audio
The Garmin GDU 116NC places the core capabilities of a modern certified
glass cockpit into one highly integrated 11.6-inch display. It can
provide primary flight, multifunction and available engine indication
presentation while also supplying IFR GPS navigation, VOR and
localizer reception, VHF communication and cockpit-audio control.
01 / IFR NAVIGATION
Integrated GPS and VHF NAV
The GDU 116NC includes an IFR-certified GPS receiver and an
IFR-certified VHF NAV receiver, supporting GPS navigation along
with compatible VOR, localizer and glideslope-based operations.
02 / COMMUNICATION
Built-In 10-Watt COMM
An integrated 10-watt VHF COMM radio provides active and standby
frequency presentation, tuning, frequency swap, monitoring,
volume and squelch controls through the AXIS interface.
03 / COCKPIT AUDIO
Four-Place Intercom Capability
The internal audio-panel configuration supports a four-place
intercom, dual-COMM switching, COMM playback and compatible
Bluetooth phone and entertainment functions.
i
Important GDU 116NC Configuration Information
Part number 010-03002-00 is the certified
GDU 116NC. Unlike the GDU 116C, this model adds an
internal VHF NAV receiver to its IFR GPS, 10-watt VHF COMM and
audio-panel capabilities. This makes the GDU 116NC the integrated
AXIS option for installations that require both GPS navigation and
conventional VOR, localizer and glideslope reception.
A Vision for Flight
See the AXIS System in Action
Explore the AXIS interface, display architecture and integrated panel
possibilities through Garmin’s flight display overview.
Depending on the approved aircraft installation and connected system
components, the GDU 116NC can support primary flight, multifunction and
engine-information presentation.
PFD
Primary Flight Display
Present attitude, airspeed, altitude, heading, air data,
navigation guidance and other critical information in a
configurable Primary Flight Window. Split-screen layouts can keep
mapping, engine or supplemental information visible beside the
primary flight view.
MFD
Multifunction Display
Display moving maps, flight plans, waypoint information, terrain,
obstacles and available traffic or weather overlays. Full-screen
and split-screen arrangements help organize information for each
phase of flight.
EIS
Engine Indication System
When paired with the required GEA™ 110 engine adapter, compatible
sensors and approved configuration, AXIS can display engine,
electrical, fuel and other aircraft-system parameters. A GEA 110
installation requires at least one GDU 116C or GDU 116NC.
Larger. Smarter. Faster.
The 11.6-inch AXIS format provides a full inch more diagonal display
area than the Garmin 10.6-inch G3X Touch™ display. Faster processing
supports responsive map interaction, while enhanced graphics provide
clear presentation of flight, navigation and system information.
Fully Integrated System
Nearly Everything in One Display
The GDU 116NC combines an IFR GPS navigator, VHF NAV receiver,
10-watt VHF COMM radio and internal audio-panel capability with a
full-HD flight display. Integrating these functions can reduce the
need for a traditional radio stack while centralizing flight,
navigation, radio and audio controls.
Antennas, sensors, connectors, installation kits and other required
components are selected separately according to the approved
aircraft installation.
Advanced Capabilities and Safety
More Awareness in Flight and on the Ground
Depending on installed equipment and configuration, AXIS supports
safety-enhancing tools such as Runway Occupancy Awareness,
optional SurfaceWatch™ technology, 3D SafeTaxi® diagrams and Smart
Glide™ technology. The dedicated EMER bezel key provides direct
access to configured emergency functions.
Runway Occupancy Awareness requires a compatible ADS-B transponder.
Smart Glide, SurfaceWatch and related functions require compatible
equipment and an appropriately configured installation.
Streamlined Installation
A Practical G3X Touch Upgrade Path
The 11.6-inch AXIS display provides additional display area while
using the same panel cutout and screw locations as the Garmin
10.6-inch G3X Touch display. Garmin also states that AXIS can use
many existing G3X Touch sensors and components in qualifying
installations.
Reuse of existing panel provisions, sensors, wiring or components
must be confirmed against the approved installation data for the
specific aircraft.
Integrated GDU 116NC Functions
GPS, NAV, COMM and Audio
The GDU 116NC is designed to centralize core cockpit functions while
remaining configurable for the aircraft, mission and connected
avionics.
IFR GPS Navigation
Internal Certified GPS
The GDU 116NC includes an internal GPS receiver certified for IFR
navigation. Graphical flight planning helps pilots build and
visualize routes, departures, arrivals, holds and available
instrument procedures directly through the AXIS interface.
Available approach capabilities include GPS-guided LPV and LNAV
procedures when the aircraft and system are appropriately
configured and approved.
VHF NAV Receiver
VOR, Localizer and Glideslope Capability
The integrated VHF NAV receiver supports conventional ground-based
navigation alongside the internal IFR GPS. NAV frequency tuning,
source selection and compatible VOR or localizer information are
integrated with the AXIS display environment.
Supported configurations can provide automatic GPS-to-localizer
switching for compatible ILS operations.
VHF Communication
Integrated 10-Watt COMM Radio
The internal VHF COMM radio supports active and standby frequency
display, standby-frequency tuning, frequency swap, volume control,
squelch control and monitoring through the AXIS interface.
Dual-COMM switching is supported when a second compatible AXIS or
external COMM radio is installed and configured.
Cockpit Audio
Audio Panel and Four-Place Intercom
The internal audio-panel capability supports a four-place intercom,
COMM playback and management of compatible radio, alert and
entertainment audio sources.
Built-in Bluetooth® connectivity can support compatible phone calls
and entertainment audio through connected headsets.
Confirm the required audio wiring, connectors, headset
configuration, microphone provisions and compatible external
sources with Neal Avionics.
AXIS Platform Capabilities
Designed for the Way You Fly
Flight Planning
Graphical Route Management
Touch-based flight-plan entry and graphical routing help pilots
visualize route segments, departures, arrivals, holding procedures
and available visual or instrument approaches.
The integrated GPS and NAV receivers allow the GDU 116NC to support
both satellite-based navigation and compatible conventional
ground-based approach operations.
Connectivity
Wireless Cockpit Tools
Built-in Wi-Fi® and Bluetooth technology support compatible
database, mobile-device and connected-cockpit functions.
Connectivity can include supported Garmin Pilot™ and ForeFlight
Mobile functions.
Garmin lists future compatibility with the GDL® 60 datalink and
PlaneSync™ technology.
Airport Awareness
More Information on the Ground
Available airport tools include 3D SafeTaxi diagrams, Runway
Occupancy Awareness with a compatible ADS-B transponder and
optional SurfaceWatch technology to help monitor airport and runway
operations.
Emergency Assistance
Direct Access Through EMER
The dedicated EMER key provides quick access to supported emergency
functions. When appropriately equipped, Smart Glide can identify a
suitable airport and work with a compatible autopilot to assist
with best-glide guidance.
System Highlights
Core GDU 116NC Advantages
Certified 11.6-inch AXIS flight display
1920 × 1080 full-HD flat-panel presentation
Internal GPS receiver certified for IFR navigation
Integrated IFR-certified VHF NAV receiver
VOR, localizer and glideslope capability
Integrated 10-watt VHF COMM radio
Internal audio-panel capability
Four-place cockpit intercom capability
Dual-COMM switching support
COMM playback capability
Compatible Bluetooth phone and entertainment audio
Configurable PFD and MFD presentation
Available PFD, MFD and EIS split-screen layouts
Required GDU option for GEA 110 engine display support
Capacitive touchscreen interface
Two dual concentric control knobs
Six bezel softkeys and dedicated EMER key
Customizable data fields and pilot-selectable widgets
Available traffic, weather, terrain and obstacle overlays
Enhanced synthetic vision capability
3D SafeTaxi airport diagrams
Built-in Wi-Fi and Bluetooth connectivity
Same panel cutout and screw points as 10.6-inch G3X Touch
Choose the Correct Display
AXIS 11.6-inch Model Comparison
AXIS 11.6-inch displays are offered in several configurations. Verify
the exact part number against the aircraft’s required navigation,
communication and audio architecture before ordering.
GDU and Part Number
Certification
Internal GPS
COMM
NAV
Audio Panel
GDU 116NC010-03002-00
This Product
Certified / TSO
IFR
✓
✓
✓
GDU 116C010-03001-00
Certified / TSO
IFR
✓
—
✓
GDU 116B010-03000-00
Certified / TSO
VFR
—
—
—
GDU 116BX010-03004-00
Experimental
VFR
—
—
—
AXIS 11.6-inch Specifications
Designed to Fit the Panel
Confirm final clearance, connector access, antenna requirements,
cooling, mounting provisions and wiring through the approved Garmin
installation documentation.
Diagonal Display Size
11.6 inches
294.6 mm
Display Resolution
1920 × 1080
Full HD
Maximum External Size
11.00 × 7.83 × 4.28 in
279.4 × 198.9 × 108.7 mm
Depth Behind Panel Face
2.48 inches
62.9 mm
Ownership and Support
Prepare for Your New AXIS System
Garmin provides documentation, training resources and product support
to help owners understand and operate their AXIS flight display system.
Manuals and Approvals
Review the applicable certified-aircraft pilot guide, approved
model list, STC information and installation documentation before
finalizing the system.
Training Resources
Garmin offers classroom and eLearning options, AXIS trainer
software and additional educational resources to help pilots learn
the system.
Garmin Product Support
AXIS is supported by Garmin’s aviation product-support organization
and the warranty coverage applicable to the purchased equipment.
Neal Avionics System Planning
Not Sure This Is the Right AXIS Display?
The GDU 116NC is one component of a complete aircraft avionics
system. Aircraft eligibility, GPS and NAV antenna requirements,
audio-panel configuration, ADAHRS and magnetometer selection,
engine-interface requirements, autopilot integration, datalink
equipment, transponder compatibility, wiring, mounting hardware and
installation labor must all be evaluated for the specific aircraft.
Contact Neal Avionics before ordering so we can confirm the correct
AXIS display model and develop an appropriate installation plan.
Professional installation required
Aircraft eligibility must be verified
Additional system components may be required
Integrated IFR GPS and NAV
Product Information
Specifications, Compatibility & Documentation
Review detailed technical specifications, compatible avionics interfaces
and available product documentation for the
Garmin AXIS GDU 116NC 11.6-Inch IFR NAV/COMM Flight Display | 010-03002-00.
This information can help aircraft owners and operators understand the
product’s physical requirements, supported equipment and installation
considerations.
Interfaces & Avionics Compatibility
Review supported avionics categories, manufacturers, equipment
models and available interface information.
Active Traffic Receivers
GTS™ 800
GTS 820
GTS 825
GTS 850
GTS 855
Audio Panels
GMA™ 240
GMA 245
GMA 245R
GMA 342
GMA 345
Autopilots
GFC™ 500
AXIS flight display support for twin-engine installations with the GFC 500 is coming soon.
GFC 500X
GFC 600
Compatibility coming soon.
Additional Autopilots
AXIS flight displays support limited integration with autopilots from another manufacturer when interfaced to a GI 275 standby instrument. Supported functions include NAV source selection, course and heading selection, and GPSS mode.
Compatible models: Aero 452-201, 454, 455, 551, 553 and 851.
Datalink
GDL® 60
Compatibility coming soon.
GDL 50R
GDL 52R
SiriusXM® support coming soon.
GDL 50
GDL 52
SiriusXM support coming soon.
Interface Adapters
GEA™ 24
GEA 110
GAD™ 27
GAD 29
GAD 13
Height Advisor
GHA™ 15
Navigators
GTN™ 750Xi
GTN 725Xi
GTN 650Xi
GTN 635Xi
GTN 625Xi
GTN 750
GTN 725
GTN 650
GTN 635
GTN 625
GPS 175
VNAV capability is available when paired with AXIS flight displays.
GNC® 355
VNAV capability is available when paired with AXIS flight displays.
GNX™ 375
VNAV capability is available when paired with AXIS flight displays.
GNS™ 430W
The AXIS flight display system does not support COMM functionality for this LRU. The COMM radio must be controlled directly through the LRU.
GNS 530W
The AXIS flight display system does not support COMM functionality for this LRU. The COMM radio must be controlled directly through the LRU.
GNS 480
The AXIS flight display system does not support COMM functionality for this LRU. The COMM radio must be controlled directly through the LRU.
GNC 420W
GPS 400W
GPS 500W
Sensors
GSU 25
GSU 73
GSU 75
GMU 11
GMU 22
GMU 44B
GAP 26
GTP 59
Standby Flight Displays
GI 275
An ADAHRS-equipped model is required.
G5 for Certificated Aircraft
G5 for Experimental/LSA Aircraft
Radios
GNC 215
GNC 255
GTR™ 205
GTR 205R
GTR 205xR
GTR 225
GTR 20
GTR 200
SL30
SL40
Transponders
GTX™ 345
GTX 335
GTX 325
GTX 345R
GTX 335R
GTX 45R
GTX 35R
GTX 330 / 330ES
GTX 328
GTX 327
GTX 33 / 33ES
GTX 32
GTX 23 / 23ES
GPS 20A
Specifications and compatibility information are provided for general
reference and may change without notice. Final aircraft eligibility,
approved configuration, equipment compatibility and installation
requirements must be confirmed by Neal Avionics before installation.
Watch A Vision for Flight
