Cessna 210 Autopilot Systems

Cessna 210 Autopilot Systems

Shop Cessna 210 and T210 autopilot systems, including Garmin GFC 500 2-servo and automatic pitch trim configurations for eligible aircraft.

Skip to results list
Availability
Price
to
The highest price is $18,470.00
Clear
14 items

Filter

Availability
Price
to
The highest price is $18,470.00

Compare Garmin GFC 500 autopilot systems and upgrade configurations for eligible Cessna 210 and Turbo 210 series aircraft. This collection brings together available pitch-and-roll systems, automatic pitch trim configurations and aircraft-specific packages so you can review the available choices for your aircraft in one place.

Garmin autopilot compatibility varies throughout the Cessna 210 family. The correct package depends on your exact aircraft model, serial number, normally aspirated or turbocharged configuration, existing avionics, modifications, approved installation data and the capabilities you want included. Neal Avionics can help verify aircraft eligibility and system requirements before you order.

Built for Eligible Cessna 210 Models

Shop aircraft-specific Garmin autopilot packages for select normally aspirated and turbocharged Cessna 210 series aircraft.

Compare Complete Configurations

Review core pitch-and-roll systems, automatic pitch trim options and available aircraft-specific upgrade packages.

Dealer-Backed Guidance

Get help confirming your aircraft information, installed avionics and desired autopilot capabilities before purchase.

Modern Autopilot Options for the Cessna 210

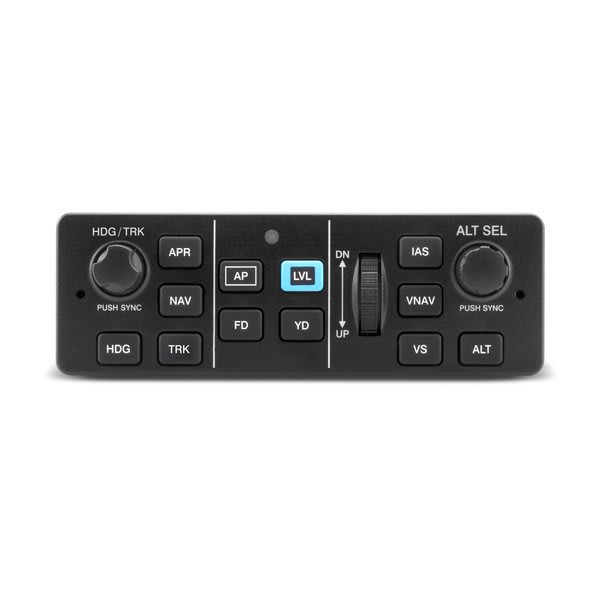

A modern digital autopilot can make a Cessna 210 more capable and comfortable during cross-country travel, instrument operations and high-workload phases of flight. The Garmin GFC 500 provides an integrated flight-control solution with aircraft-specific configurations available for eligible Cessna 210 and Turbo 210 airframes.

Depending on the selected package and the compatible avionics installed in the panel, available capabilities may include pitch and roll control, heading and navigation tracking, altitude hold, vertical speed and indicated airspeed modes, altitude preselect, vertical navigation, coupled approach guidance, Electronic Stability and Protection and a dedicated Level Mode.

Eligible installations may also support automatic pitch trim and manual electric trim when the required trim servo and approved equipment are included. These capabilities can reduce repeated manual trim adjustments while helping the aircraft remain properly trimmed as power, speed and configuration change.

Every Cessna 210 and instrument panel is different. The appropriate Garmin autopilot package depends on the exact aircraft model, approved system architecture, existing flight instruments, installed navigator, electrical system, interfaces and the functions you want included in the completed installation.

Choosing the Right Cessna 210 Autopilot Configuration

2-Servo Pitch and Roll Systems

A 2-servo configuration provides powered pitch and roll control. This is the foundation of the Garmin GFC 500 system and may be the right choice for an owner who wants core lateral and vertical flight-control capabilities without adding an automatic pitch trim servo.

3-Servo Systems with Automatic Pitch Trim

An automatic pitch trim configuration adds a dedicated trim servo to the pitch-and-roll autopilot. Automatic pitch trim can reduce the need for repeated manual trim adjustments while the autopilot is controlling the aircraft and can help maintain a properly trimmed condition as airspeed, power and vertical modes change.

Pitch Trim Upgrade Planning

Some compatible installations may allow automatic pitch trim to be added to an existing eligible GFC 500 system. Upgrade availability depends on the aircraft approval, existing servos, wiring, trim system and installed equipment. An existing 2-servo installation should be reviewed before an upgrade package is selected.

Normally Aspirated and Turbocharged Aircraft

The Cessna 210 family includes both normally aspirated 210 and turbocharged T210 aircraft. Packages that appear similar may have different aircraft applications, installation hardware or approval requirements. Select the product prepared for the exact aircraft model and serial-number range rather than relying only on the general Cessna 210 family name.

Required and Optional Panel Equipment

The GFC 500 operates as part of an integrated avionics system. Compatible electronic flight instruments, displays, navigators, adapters and interfaces may be required to support the selected functions. Review the individual product listing and confirm the complete system requirements before choosing a package.

Cessna 210 Compatibility and Installation Planning

A product title that includes “Cessna 210” does not automatically confirm that the package is approved for every aircraft in the 210 family. Compatibility can depend on the exact model, serial number, normally aspirated or turbocharged configuration, installed avionics, aircraft modifications and current approved installation data.

Garmin approvals cover select Cessna 210 and T210 models, but equipment and installation requirements can differ across the series. Early and later-model aircraft should not be treated as interchangeable without reviewing the applicable approval and installation documents.

Before requesting a recommendation or installation quote, gather the following aircraft information:

  • Exact aircraft model and serial number
  • Aircraft N-number
  • Normally aspirated or turbocharged configuration
  • Current primary flight instruments
  • Installed GPS or navigation equipment
  • Existing autopilot and trim equipment
  • Electrical-system configuration
  • Aircraft modifications or applicable STCs
  • Desired servo configuration
  • Desired approach and navigation capabilities

Professional Installation Is Required

Certified autopilot equipment requires professional installation. Product pricing does not include installation labor, wiring, circuit protection, installation materials, brackets, control-system work, panel modifications or additional interface equipment unless the individual product listing specifically states otherwise.

Frequently Asked Questions

Cessna 210 Autopilot FAQ

Which Cessna 210 models can use a Garmin GFC 500 autopilot?

Garmin has published GFC 500 approvals for select normally aspirated and turbocharged aircraft from the Cessna 210D through 210N and T210F through T210N model ranges. Approval is model-, serial-number- and installation-specific, so your aircraft information and installed equipment must be checked against current approved data before ordering.

Can a Garmin GFC 500 be installed in a Turbo 210?

The GFC 500 is approved for select T210 models. The exact aircraft model, serial number, modifications and existing avionics must be verified because the approval and installation requirements are not identical across every Turbo 210.

What is the difference between a 2-servo and 3-servo Cessna 210 autopilot?

A 2-servo system provides pitch and roll control. A 3-servo configuration adds a dedicated pitch trim servo when automatic pitch trim is included in the selected aircraft-specific package.

Does every Cessna 210 GFC 500 package include automatic pitch trim?

No. Some packages provide the primary pitch-and-roll autopilot without a trim servo, while other configurations include automatic pitch trim. Review the product title, included equipment and approved aircraft application before ordering.

Can automatic pitch trim be added to an existing GFC 500 installation?

An automatic pitch trim upgrade may be possible for some compatible installations. The existing autopilot configuration, installed servos, wiring, trim system and aircraft approval must be reviewed before an upgrade package is selected.

What flight instruments are required for a Garmin GFC 500?

Required instruments and interfaces depend on the approved system architecture. Compatible Garmin electronic flight instruments or displays may include equipment such as the GI 275, G5, G500 TXi or G3X Touch when installed in an approved configuration. Additional navigation and interface equipment may be required for specific functions.

Can a Garmin GFC 500 fly an instrument approach?

When paired with compatible and properly installed navigation equipment, supported GFC 500 configurations can provide coupled navigation and instrument approach capabilities. Available modes depend on the navigator, flight display, installed interfaces and approved aircraft configuration.

Can equipment from the existing Cessna 210 autopilot be reused?

Reuse options depend on the existing system and approved installation design. Do not assume that existing servos, brackets, wiring, trim components or control equipment can be retained without an inspection and installation review.

Does the displayed Cessna 210 autopilot price include installation?

No, unless the individual product listing specifically states that installation is included. Installation labor, wiring, circuit protection, brackets, control-system work, panel modifications, additional avionics and interface equipment can affect the final project price.

How do I know which Cessna 210 autopilot package to order?

Provide Neal Avionics with your exact aircraft model, serial number, N-number, current panel equipment, existing autopilot information and desired capabilities. Our team can help identify the appropriate configuration and determine what additional equipment or installation planning may be required.

Aircraft-Specific Assistance

Not Sure Which Autopilot Is Right for Your Cessna 210?

Garmin autopilot configurations can look similar while containing important aircraft-, model- and installation-specific differences. Contact Neal Avionics before ordering and let our team help verify the correct system for your aircraft, panel and desired capabilities.

Request an Installation Quote
